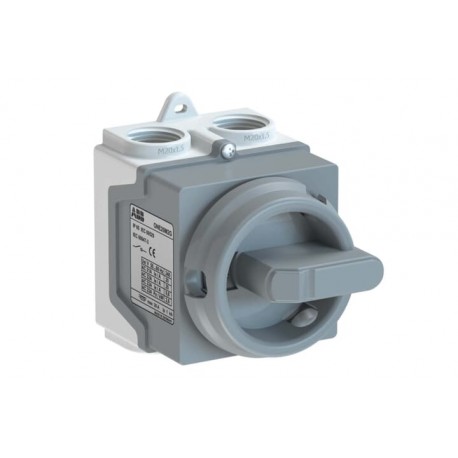

1SCA135532R1001 ABB ONE20M2G Enclosed Switch Disconnector
1SCA135532R1001
135532
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb ONE20M2G Enclosed Switch Disconnector (part 1SCA135532R1001) serves as a protective isolation device mounted in enclosures to interrupt electrical current manually in harsh industrial environments. These components are commonly installed near machinery and outdoor electrical equipment to provide safe local shutoff capabilities during servicing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC390135M0205
- Mechanical Drawings: ONE926584RM20.stp
- Degree of Protection: acc. to IEC 60529 IP67
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85363030
- Country or Territory of Origin: Finland
- Product Net Width: 65 mm
- Product Net Height: 92 mm
- Product Net Depth / Length: 84 mm
- Product Net Weight: 0.11 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC390135M0205 |
| Mechanical Drawings | ONE926584RM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 6417019641225 |
| Technical | |
| Cable Cross-Section | 0.75 ... 4 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 4 mm² |
| Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 20 A |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Enclosure Material | Plastic |
| Handle Color | Grey |
| Handle Type | Round handle |
| Impact Resistance Rating | Housing IK09 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 2P |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (230 V) Single Phase 20 A |
| Rated Operational Current AC-23A (Ie) | (230 V) Single Phase 15.2 A |
| (380 ... 415 V) 15.2 A | |
| Rated Operational Power AC-23A (Pe) | (230 V) Single Phase 2.6 kW |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC343001D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
