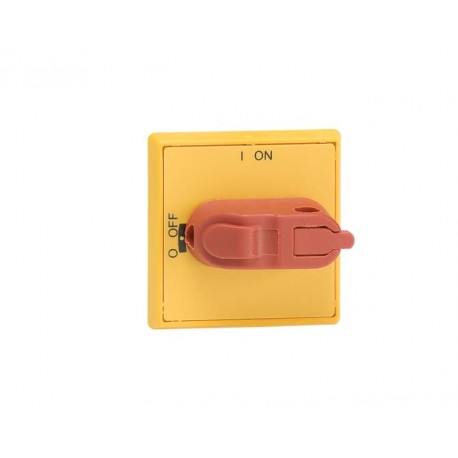

1SCA105327R1001 ABB OHYS3PH Handle
1SCA105327R1001
105327
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB OHYS3PH Handle serves as an operator control interface for industrial disconnect switches and circuit breakers, enabling manual switching operations on control panels and electrical enclosures. Such handles are routinely used across machinery and power distribution setups to provide safe, direct mechanical actuation while maintaining panel integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390065M0004
- Mechanical Drawings: 1SCC390183F0001
- Degree of Protection: IP54
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Lithuania
- Product Net Width: 48 mm
- Product Net Height: 48 mm
- Product Net Depth / Length: 51 mm
- Product Net Weight: 0.035 kg
- Package Level 1 Units: 1 piece
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390065M0004 |
| Mechanical Drawings | 1SCC390183F0001 |
| 1SCC390182F0001 | |
| OH_S3PH_palikka.igs | |
| Environmental | |
| Degree of Protection | IP54 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 48 mm |
| Product Net Depth / Length | 51 mm |
| Product Net Weight | 0.035 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Depth / Length | 52 mm |
| Package Level 1 Height | 48 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 6417019412474 |
| Technical | |
| Color | Red-Yellow |
| Degree of Protection | IP54 |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661930 |
