View larger
Images are for illustrative purposes only. Please refer to data sheet for details

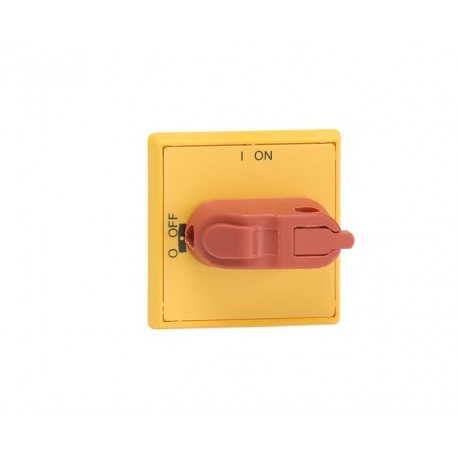

1SCA105326R1001 ABB OHYS3AH1 Handle
1SCA105326R1001
105326
ABB
1 Pcs.
OHYS3AH1 Handle
Remote OHYS3AH1
OHYS3AH1 HANDLE
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390065M0004 |
| Mechanical Drawings | 1SCC390181F0001 |
| 1SCC390180F0001 | |
| OH_S3AH_palikka.igs | |
| Environmental | |
| Degree of Protection | IP54 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 48 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.035 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Depth / Length | 48 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 6417019412467 |
| Technical | |
| Color | Red-Yellow |
| Degree of Protection | IP54 |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661929 |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Red |
| Suitable for emergency stop (EF001433) | No |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Suitable for switch disconnector (EF007252) | Yes |
