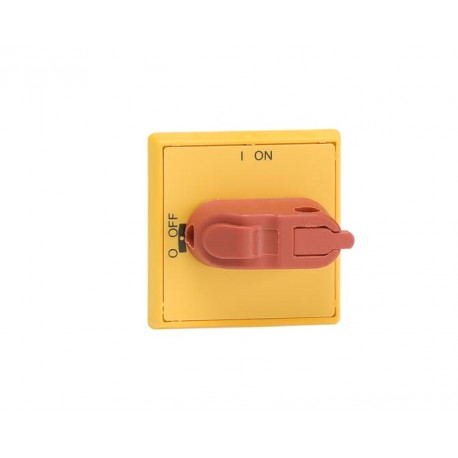

ABB 1SCA105325R1001 1SCA105325R1001 ABB OHYS3AH Handle View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105325R1001 ABB OHYS3AH Handle

1SCA105325R1001

105325

ABB

1 Pcs.

OHYS3AH Handle Remote OHYS3AH OHYS3AH HANDLE

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB OHYS3AH Handle functions as a manual mechanical interface for operating industrial disconnect switches and circuit protection devices from the exterior of an enclosure. Operators use this component to safely open or close internal electrical contacts while maintaining environmental sealing of the cabinet. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390065M0004
  • Mechanical Drawings: 1SCC390181F0001
  • Degree of Protection: IP54
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 48 mm
  • Product Net Height: 48 mm
  • Product Net Depth / Length: 40 mm
  • Product Net Weight: 0.035 kg
  • Package Level 1 Units: bag 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390065M0004
Mechanical Drawings1SCC390181F0001
1SCC390180F0001
OH_S3AH_palikka.igs
Environmental
Degree of ProtectionIP54
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width48 mm
Product Net Height48 mm
Product Net Depth / Length40 mm
Product Net Weight0.035 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width48 mm
Package Level 1 Depth / Length48 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.04 kg
Package Level 1 EAN6417019412450
Technical
ColorRed-Yellow
Degree of ProtectionIP54
Handle ColorRed / Yellow
Handle TypeSelector
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661928
E-Number (Norway)4363582
