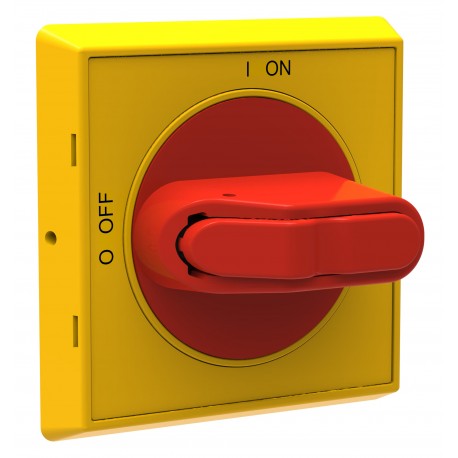

ABB 1SCA105297R1001 1SCA105297R1001 ABB OHYS2AJ1 Handle View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105297R1001 ABB OHYS2AJ1 Handle

1SCA105297R1001

105297

ABB

1 Pcs.

OHYS2AJ1 Handle Remote OHYS2AJ1 OHYS2AJ1 HANDLE

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SCA105297R1001 OHYS2AJ1 handle is an external operator component mounted onto enclosure doors to actuate internal disconnect switches and circuit breakers safely from the outside. These rugged handles are standard additions to industrial distribution boards, providing reliable mechanical linkage and padlock capabilities for lockout/tagout procedures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390064M0004
  • Mechanical Drawings: 1SCC390179F0001
  • Degree of Protection: IP65
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 65 mm
  • Product Net Height: 65 mm
  • Product Net Depth / Length: 48 mm
  • Product Net Weight: 0.075 kg
  • Package Level 1 Units: 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390064M0004
Mechanical Drawings1SCC390179F0001
1SCC390178F0001
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width65 mm
Product Net Height65 mm
Product Net Depth / Length48 mm
Product Net Weight0.075 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width65 mm
Package Level 1 Depth / Length65 mm
Package Level 1 Height48 mm
Package Level 1 Gross Weight0.08 kg
Package Level 1 EAN6417019412276
Technical
ColorRed-Yellow
Degree of ProtectionIP65
Handle ColorRed / Yellow
Handle TypeSelector
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661924
