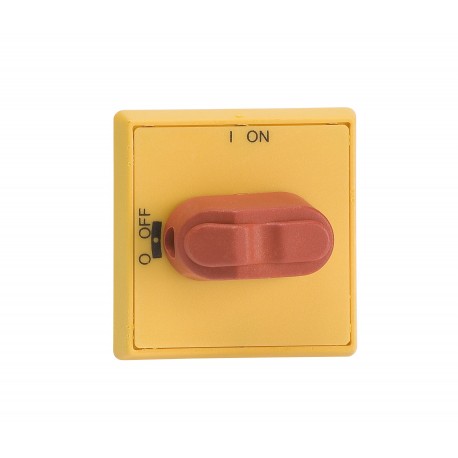

ABB 1SCA105291R1001 1SCA105291R1001 ABB OHYS1AH1 Handle View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105291R1001 ABB OHYS1AH1 Handle

1SCA105291R1001

105291

ABB

1 Pcs.

OHYS1AH1 Handle Controller OHYS1AH1 OHYS1AH1 HANDLE

Automation > Handle for power circuit breaker
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A handle manufactured by Abb functions as a manual interface device for safely operating disconnect switches, circuit breakers, and enclosed industrial control assemblies. These mechanical actuators allow operators to securely open or close heavy-duty electrical contacts while maintaining panel integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390064M0004
  • Mechanical Drawings: 1SCC390171F0001
  • Degree of Protection: IP54
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 48 mm
  • Product Net Height: 48 mm
  • Product Net Depth / Length: 40 mm
  • Product Net Weight: 0.035 kg
  • Package Level 1 Units: 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390064M0004
Mechanical Drawings1SCC390171F0001
1SCC390170F0001
OH_S1AH_palikka.igs
Environmental
Degree of ProtectionIP54
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width48 mm
Product Net Height48 mm
Product Net Depth / Length40 mm
Product Net Weight0.035 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width48 mm
Package Level 1 Depth / Length48 mm
Package Level 1 Height41 mm
Package Level 1 Gross Weight0.039 kg
Package Level 1 EAN6417019412221
Technical
ColorRed-Yellow
Degree of ProtectionIP54
Handle ColorRed / Yellow
Handle TypeSelector
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661920
E-Number (Norway)4363580
