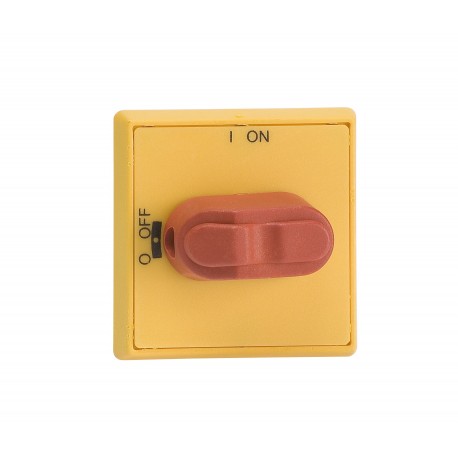

1SCA105290R1001 ABB OHYS1AH Handle
1SCA105290R1001
105290
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA105290R1001 ABB OHYS1AH Handle functions as a manual control actuator for panel-mounted industrial disconnect switches and circuit breakers. Operating handles provide safe mechanical linkage through enclosure doors, allowing technicians to throw high-voltage switches without opening protective electrical compartments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390064M0004
- Mechanical Drawings: 1SCC390171F0001
- Degree of Protection: IP54
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Lithuania
- Product Net Width: 48 mm
- Product Net Height: 48 mm
- Product Net Depth / Length: 40 mm
- Product Net Weight: 0.037 kg
- Package Level 1 Units: 1 piece
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390064M0004 |
| Mechanical Drawings | 1SCC390171F0001 |
| 1SCC390170F0001 | |
| OH_S1AH_palikka.igs | |
| Environmental | |
| Degree of Protection | IP54 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 48 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.037 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Depth / Length | 48 mm |
| Package Level 1 Height | 41 mm |
| Package Level 1 Gross Weight | 0.043 kg |
| Package Level 1 EAN | 6417019412214 |
| Technical | |
| Color | Red-Yellow |
| Degree of Protection | IP54 |
| Handle Color | Red / Yellow |
| Handle Type | Selector |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 39122230 |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661919 |
| E-Number (Norway) | 4363578 |
