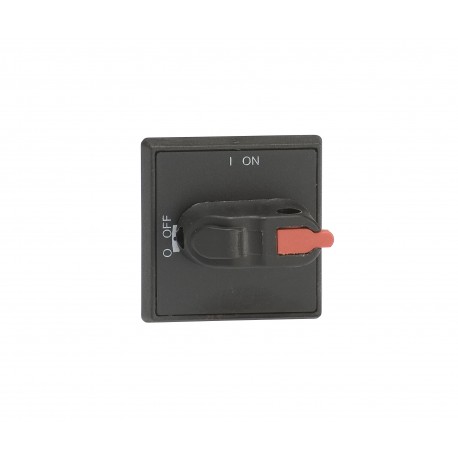

1SCA105236R1001 ABB OHBS3PH Handle
1SCA105236R1001
105236
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A compact panel handle, designated as the Abb 1SCA105236R1001, serves as a standard operator interface for controlling low-voltage disconnect switches and circuit breakers from the outside of an electrical enclosure. These handles offer reliable mechanical linkage while maintaining sealing integrity against dust and moisture on factory floor panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390064M0004
- Mechanical Drawings: 1SCC390183F0001
- Degree of Protection: IP54
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Lithuania
- Product Net Width: 48 mm
- Product Net Height: 48 mm
- Product Net Depth / Length: 51 mm
- Product Net Weight: 0.045 kg
- Package Level 1 Units: bag 1 piece
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390064M0004 |
| Mechanical Drawings | 1SCC390183F0001 |
| 1SCC390182F0001 | |
| OH_S3PH_palikka.igs | |
| Environmental | |
| Degree of Protection | IP54 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 48 mm |
| Product Net Depth / Length | 51 mm |
| Product Net Weight | 0.045 kg |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 48 mm |
| Package Level 1 Depth / Length | 52 mm |
| Package Level 1 Height | 48 mm |
| Package Level 1 Gross Weight | 0.05 kg |
| Package Level 1 EAN | 6417019411804 |
| Technical | |
| Color | Black |
| Degree of Protection | IP54 |
| Handle Color | Black |
| Handle Type | Selector |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| IDEA Granular Category Code (IGCC) | 3038 >> Handles or knobs |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661916 |
