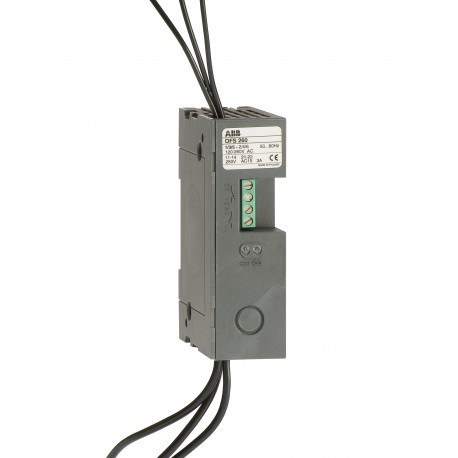

1SCA022716R0180 ABB OFS260 Fuse monitor
1SCA022716R0180
022716
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A fuse monitor such as the Abb 1SCA022716R0180 OFS260 unit is designed to supervise the operational status of industrial fuses and provide remote signaling in the event of a blown fuse. Fuse monitoring devices are widely integrated into electrical distribution panels to ensure prompt fault detection and minimize unexpected downtime in protected circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC314002M0003
- Mechanical Drawings: OFS260-690.stp
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Estonia
- Product Net Width: 50 mm
- Product Net Height: 100 mm
- Product Net Depth / Length: 100 mm
- Product Net Weight: 0.16 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 50 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC314002M0003 |
| Mechanical Drawings | OFS260-690.stp |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Estonia |
| Dimensions | |
| Product Net Width | 50 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 100 mm |
| Product Net Weight | 0.16 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 100 mm |
| Package Level 1 Gross Weight | 0.16 kg |
| Package Level 1 EAN | 6417019261096 |
| Technical | |
| Mounting Type | Base mounting, DIN mounting, screw mounting |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Main Circuit 120…260 V AC |
| Rated Voltage (Ur) | 120…260 V |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC314008D2702 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 4935 >> Fuse parts or accessories |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
