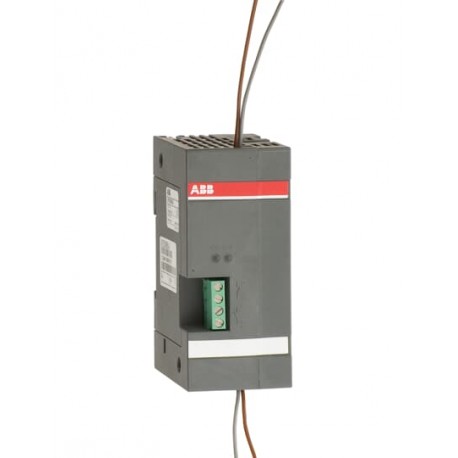

1SCA121775R1001 ABB MONITOR FUSE OFD110EA 48..110VCC
1SCA121775R1001
121775
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 1SCA121775R1001 ABB MONITOR FUSE OFD110EA 48..110VCC functions as a specialized fuse monitoring device designed to detect blown fuses within industrial electrical systems. Fuse status monitors are commonly deployed in power distribution switchboards to provide rapid fault indication and safeguard sensitive equipment. Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC390116M0201
- Mechanical Drawings: OFD110-500EA.stp
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Estonia
- Product Net Width: 95 mm
- Product Net Height: 55 mm
- Product Net Depth / Length: 115 mm
- Product Net Weight: 0.155 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 95 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC390116M0201 |
| Mechanical Drawings | OFD110-500EA.stp |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Estonia |
| Dimensions | |
| Product Net Width | 95 mm |
| Product Net Height | 55 mm |
| Product Net Depth / Length | 115 mm |
| Product Net Weight | 0.155 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 95 mm |
| Package Level 1 Depth / Length | 115 mm |
| Package Level 1 Height | 55 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Package Level 1 EAN | 6417019530406 |
| Technical | |
| Mounting Type | Base mounting, DIN mounting, screw mounting |
| Rated Operational Voltage | Main Circuit 45…140 V DC |
| Rated Voltage (Ur) | 45…140 V |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC314011D0201 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 4935 >> Fuse parts or accessories |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601565 |
