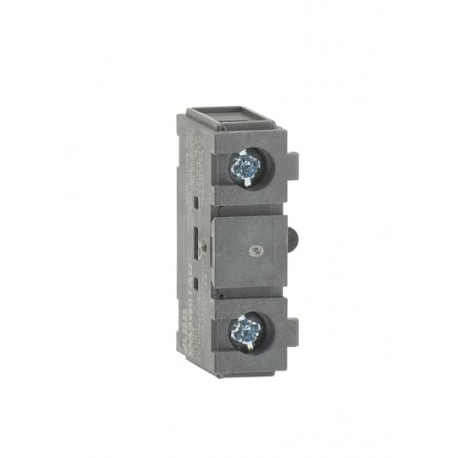

1SCA022819R5260 ABB OA3G01AU Auxiliary contact
1SCA022819R5260
022819
ABB
1 Pcs.
Automation > Auxiliary contact block
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb OA3G01AU Auxiliary contact is a precision switching accessory designed for integration into switchgear and motor control assemblies. Panel builders apply these dependable auxiliary elements to transmit low-voltage control signals and monitor operational states.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390026M0018
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Bulgaria
- Product Net Width: 40 mm
- Product Net Height: 11 mm
- Product Net Depth / Length: 30 mm
- Product Net Weight: 0.018 kg
- Package Level 1 Units: bag 10 piece
- Package Level 1 Width: 130 mm
- Package Level 1 Depth / Length: 90 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390026M0018 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 40 mm |
| Product Net Height | 11 mm |
| Product Net Depth / Length | 30 mm |
| Product Net Weight | 0.018 kg |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 130 mm |
| Package Level 1 Depth / Length | 90 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.021 kg |
| Package Level 1 EAN | 6417019279688 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 16 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 16 A |
| Number of Auxiliary Contacts NC | 1 |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Voltage (Ur) | 690 V |
| Special Functions | AU |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390020D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000041 - Auxiliary contact block |
| ETIM 10 | EC000041 - Auxiliary contact block |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| eClass | V11.1 : 27371302 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3601001 |
