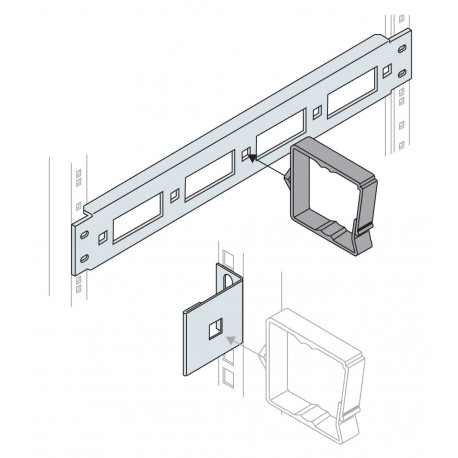

EV0081 ABB N° 5 SINGLE BRACKET CABLE RAIL
EV0081
006627
ABB
1 Pcs.
N° 5 SINGLE BRACKET CABLE RAIL
Cable holder, 5pcs.
Control and Automation Board W 600 mm H 1400 mm D 300 mm
Automation > Mounting accessories (switchgear cabinet)
System Pro E Power Structures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Abb EV0081 single bracket cable rail provides robust support for wire management within industrial control and automation enclosures. Cable rails help organize and secure internal wiring harnesses to maintain clean electrical layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Sub-Function 3: 482.6 mm (19 inch) mounting set
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Accessory Type: 13. 19" rack structure
- Product Type: 5B5B30B350
- Options Provided: 8. 19" rack frame - Equipment
- Remarks: ETIM
- Material: Galvanized Steel sheet
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
- Environmental Information: 1STC804013D0209
- Product Net Width: 50 mm
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | 482.6 mm (19 inch) mounting set |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 13. 19" rack structure |
| Product Type | 5B5B30B350 |
| Options Provided | 8. 19" rack frame - Equipment |
| Remarks | ETIM |
| Design | |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 50 mm |
| Product Net Height | 10 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.35 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| 800 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.35 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0006 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.1 : 27182807 |
| Standards | See code for structure |
