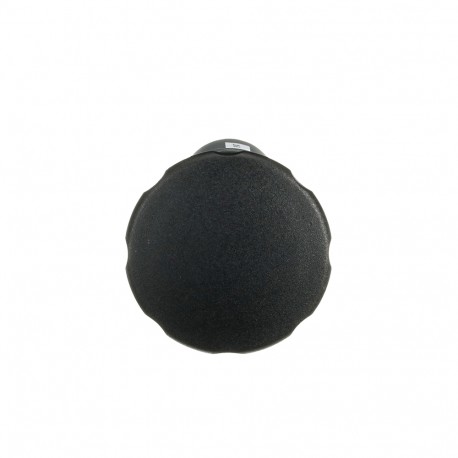

ABB 1SFA619126R1076 1SFA619126R1076 ABB MUSHROOM PUSHB CPM3-10B-11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA619126R1076 ABB MUSHROOM PUSHB CPM3-10B-11

1SFA619126R1076

619126

ABB

1 Pcs.

MUSHROOM PUSHB#CPM3-10B-11 CPM3-10B-11 SETA COMP. 1NC+1NA BLACK CPM3-10B-11 Mushroom Pushbutton

Automation > Push button, complete
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb mushroom pushb is a panel-mounted operator control device designed for quick manual actuation in industrial machinery and electrical distribution systems. Operators frequently utilize large-head actuators of this type for emergency stops or prominent command functions where immediate physical contact is necessary.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Product Net Width: 0.04 m
  • Product Net Height: 0.04 m
  • Product Net Depth / Length: 0.073 m
  • Product Net Weight: 0.036 kg
  • Ambient Air Temperature: Operation -25 ... +70 °C
  • Color: Black
  • Actuator Type: Mushroom
  • Bezel Material: Plastic
  • Illumination: Non-illuminated
  • Function: Momentary
  • Number of Auxiliary Contacts NC: 1
  • Number of Auxiliary Contacts NO: 1

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.04 m
Product Net Height0.04 m
Product Net Depth / Length0.073 m
Product Net Weight0.036 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorBlack
Actuator TypeMushroom
Bezel MaterialPlastic
IlluminationNon-illuminated
FunctionMomentary
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Insulation Voltage (Ui)300 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)50 / 60 Hz
Rated Operational VoltageMaximum 300 V
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie)(240 V) 2 A
(220 / 240 V) 2 A
Power LossMaximum 5 W
Mechanical Durability100000 cycle
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.8 N·m
Wire Stripping Length6 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 22...14 AWG
2x 22...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP2dee76a0-c899-414b-9700-d7c21fd83438 Sweden
Simplified SCIP03c21f04-4cd7-4d93-9d13-381c692a5088 Germany
b4e73af2-c8fe-4b63-8fc7-23c5fed117fd Germany
2aff6a77-d7d8-4891-beec-da02b376e365 Denmark
c430b5da-80b5-40da-bc04-a4ca765d4cef Belgium
b9e8acf9-c8bf-45d1-8f92-25a838948fbb Germany
08a980e9-9cb6-4e66-9621-c7719d0bdc3e Italy
cccae293-d571-4bb5-a3a8-7440ae0f28dc Norway
05cff715-5328-4484-a903-cd9b16e85941 Poland
71343b8b-fe84-4e3f-b087-19edff521d4e Finland
464b2622-411f-4b09-b23c-0195f5fb2cec Belgium
a55edb46-4b58-426e-b2ae-092bc7c18dba Spain
bc481b55-48ac-46a1-9434-e29bd781659f Germany
b6430f9e-ef5f-41db-939a-4fdac0e2dd95 Hungary
b8a390f5-0494-44e9-81fc-00dbcd52fa16 France
e39531b0-f173-4d52-9c20-6345cc73d6f8 Germany
81a67771-6c97-4d69-aa44-8d2103565dc4 France
c8acf437-7950-4926-85b2-f93fd57c4639 Poland
3c6fbdd0-51f5-4fc3-934c-8d4ba03f1cd4 Sweden
d0ac9592-a5c9-4249-a6ca-c1ac393d1be2 Bulgaria
4d875274-6c49-4424-a853-c1259c59ab8f Hungary
76f0b472-516b-44d8-8b4c-84f8856a050b Portugal
295b59ab-39e0-4b46-8465-686d99672b00 Greece
57a65b92-2f57-468a-a023-451ee82439f2 Poland
d615fca4-d0ed-49eb-b976-9e52f4f83b1a Croatia
718186fb-ea28-4e88-9042-c20682772eda Netherlands
c345235c-b2fc-40ba-a146-299ca9444c1e Estonia
ad9e7ad2-66a4-4e9d-b623-a8c8f1bf3d3a Czech Republic
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCQC_CN_CN50749
CQC CertificateCQC2003010305054693
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2015-005451
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL Certificate9AKK107046A3749
EAC CertificateRU C-CN.ME77.B.00587/20
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.09 m
Package Level 1 Depth / Length0.165 m
Package Level 1 Height0.045 m
Package Level 1 Gross Weight0.048 kg
Package Level 1 EAN7320500376423
External Classifications and Standards
Object Classification CodeS
ETIM 6EC001028 - Push button, complete
ETIM 7EC001028 - Push button, complete
ETIM 8EC001028 - Push button, complete
eClassV11.0 : 27371228
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Norway)4372788
E-Number (Sweden)3705012

Product Datasheet
