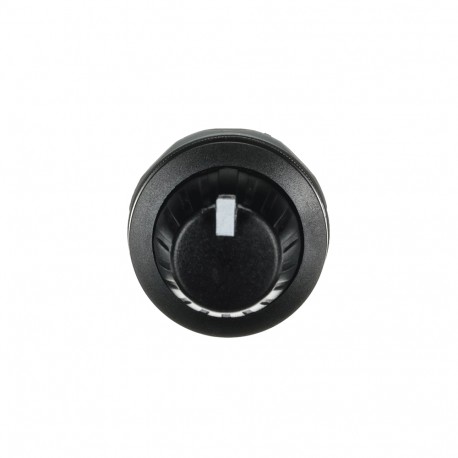

MT-150B 1SFA611410R1506 ABB MT-150B Potentiometer
MT-150B
1SFA611410R1506
ABB
1 Pcs.
Automation > Potentiometer for command devices
Command and signaling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb MT-150B is a complete panel-mount potentiometer built to deliver precise resistive signal control in industrial automation setups. Control engineers mount these variable resistors on operator panels to calibrate system parameters, adjust drive outputs, or fine-tune reference values. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85369001
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Product Net Width: 0.03 m
- Product Net Height: 0.03 m
- Product Net Depth / Length: 0.057 m
- Product Net Weight: 0.036 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Color: Black
- Actuator Type: Knob
- Bezel Material: Plastic
- Illumination: Non-illuminated
- Function: Resistor 50 kOhm
- Sub-Function: Complete potentiometer
- Enclosure Type NEMA: Type1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.057 m |
| Product Net Weight | 0.036 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Black |
| Actuator Type | Knob |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Resistor 50 kOhm |
| Sub-Function | Complete potentiometer |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Power Loss | Maximum 2 W |
| Mechanical Durability | 0.5 million |
| Connection Type | Screw Clamp |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9924 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.035 m |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 7320500376133 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC001027 - Potentiometer for control circuit devices |
| ETIM 7 | EC001027 - Potentiometer for control circuit devices |
| ETIM 8 | EC001027 - Potentiometer for command devices |
| eClass | V11.0 : 27371227 |
| UNSPSC | 41113633 |
| IDEA Granular Category Code (IGCC) | 6298 >> Potentiometers |
| E-Number (Finland) | 2313677 |
| E-Number (Sweden) | 3705004 |
