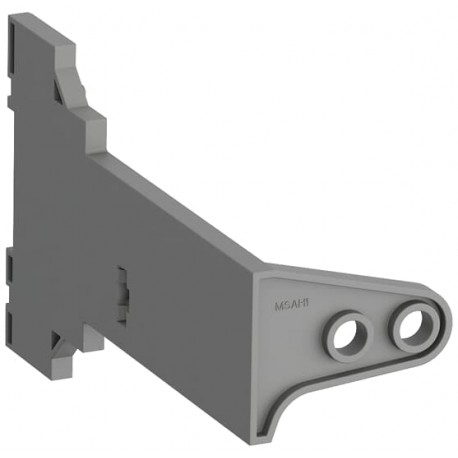

1SAM201909R1021 ABB MSAH1 Shaft Supporter
1SAM201909R1021
201909
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Mx116 and Mx132
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for structural alignment within industrial control assemblies, this ABB 1SAM201909R1021 shaft supporter provides mechanical guidance for extended operating shafts. Such components ensure smooth manual actuation of disconnectors and switches housed inside enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 39269097
- Product Net Width: 57 mm
- Product Net Height: 90 mm
- Product Net Depth / Length: 145 mm
- Product Net Weight: 0.035 kg
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 39269097 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 2CDC131033M6801 |
| Instructions and Manuals (Part 3) | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM200437F0001 |
| 1SAM200438F0001 | |
| 1SAM300414F0001 | |
| 1SAM300415F0001 | |
| Dimensions | |
| Product Net Width | 57 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 145 mm |
| Product Net Weight | 0.035 kg |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SAD101100-3411 |
| Declaration of Conformity - UKCA | 1SAD201100-3411 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 90 mm |
| Package Level 1 Height | 220 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 4013614483615 |
| External Classifications and Standards | |
| Object Classification Code | X |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
