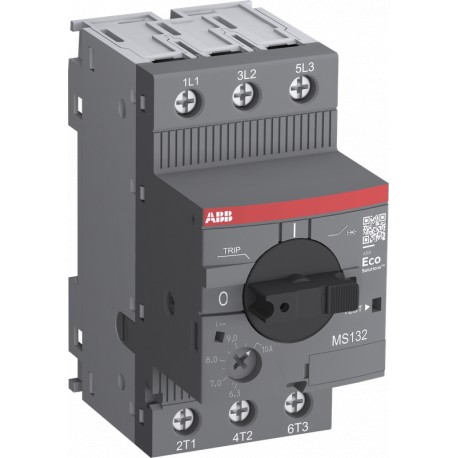

ABB 1SAM350000R1002 1SAM350000R1002 ABB MS132-0.25 Manual Motor Starter

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

1SAM350000R1002 ABB MS132-0.25 Manual Motor Starter

Name: 1SAM350000R1002 ABB MS132-0.25 Manual Motor Starter
Brand: ABB
SKU: 350000

Reference: 1SAM350000R1002

Code: 350000

Manufacturer: ABB

Units per package: 1 Pcs.

Description:

MS132-0.25 Manual Motor Starter MS132-0.25 MOTOR GUARD REG.0.16-0.25A MS132-0.25 Manual Motor Starter 0.16 ... 0.25 A

Categories:
Automation > Motor protection circuit-breaker
Mx116 and Mx132

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB MS132-0.25 manual motor starter is a compact electro-mechanical protection device designed to switch and safeguard electric motors efficiently. These units are widely utilized in industrial control panels to provide reliable short-circuit and overload protection for low-current machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362010
Data Sheet, Technical Information: 2CDC131021D0202
Instructions and Manuals: 2CDC131022M6802
Instructions and Manuals (Part 2): 2CDC131060M0202
Ex Operating Instructions: 2CDC131063M6801
Time-Current Characteristic Curve: 1SAM300505F0102
I²t Characteristic: 1SAM300507F0001
Cut-off Current Characteristic: 1SAM300508F0001
CAD Dimensional Drawing: 2CDC001079B0201
Dimension Diagram: 1SAM300402F0001
Product Net Width: 45 mm
Product Net Height: 90 mm
Product Net Depth / Length: 86.75 mm
Product Net Weight: 0.215 kg
Rated Service Short-Circuit Breaking Capacity (I cs ): (230 V AC) 100 kA

More info

▲

Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85362010
Popular Downloads
Data Sheet, Technical Information	2CDC131021D0202
Instructions and Manuals	2CDC131022M6802
Instructions and Manuals (Part 2)	2CDC131060M0202
Ex Operating Instructions	2CDC131063M6801
Time-Current Characteristic Curve	1SAM300505F0102
I²t Characteristic	1SAM300507F0001
	1SAM300507F0003
Cut-off Current Characteristic	1SAM300508F0001
	1SAM300508F0003
CAD Dimensional Drawing	2CDC001079B0201
Dimension Diagram	1SAM300402F0001
Dimensions
Product Net Width	45 mm
Product Net Height	90 mm
Product Net Depth / Length	86.75 mm
Product Net Weight	0.215 kg
Technical
Rated Service Short-Circuit Breaking Capacity (I_cs)	(230 V AC) 100 kA
	(250 V DC) 3 Poles in Series 10 kA
	(400 V AC) 100 kA
	(440 V AC) 100 kA
	(500 V AC) 100 kA
	(690 V AC) 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (I_cu)	(230 V AC) 100 kA
	(400 V AC) 100 kA
	(440 V AC) 100 kA
	(500 V AC) 100 kA
	(690 V AC) 100 kA
Rated Instantaneous Short-Circuit Current Setting (I_i)	3.1 A
Setting Range	0.16 ... 0.25 A
Rated Operational Power AC-3 (P_e)	(400 V) Three Phase 0.06 kW
Rated Operational Power AC-3e (P_e)	(400 V) Three Phase 0.06 kW
Rated Operational Voltage	Main Circuit 690 V AC
	Main Circuit 250 V DC
Rated Operational Current (I_e)	0.25 A
Rated Operational Current AC-3 (I_e)	0.25 A
Rated Operational Current AC-3e (I_e)	0.25 A
Rated Operational Current DC-5 (I_e)	0.25 A
Rated Frequency (f)	Main Circuit 50 Hz
	Main Circuit 60 Hz
Operating Frequency (f_sw)	0 ... 400 Hz
Rated Impulse Withstand Voltage (U_imp)	Main Circuit 6 kV
Rated Insulation Voltage (U_i)	690 V
Power Loss	at Rated Operating Conditions per Pole 0.7 ... 1.6 W
Number of Poles	3P
Conventional Free-air Thermal Current (I_th)	Main Circuit 0.25 A
Degree of Protection	Housing IP20
	Main Circuit Terminals IP10
Pollution Degree	3
Electrical Durability	50000 cycle
Mechanical Durability	Nr. Operations 100000 cycle
Terminal Type	Screw Terminals
Connecting Capacity Main Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
	Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
	Flexible 1/2x 0.75 ... 2.5 mm²
	Rigid 1/2x 1 ... 4 mm²
Tightening Torque	Main Circuit 0.8 ... 1.2 N·m
Wire Stripping Length	Main Circuit 9 mm
Recommended Screw Driver	Pozidriv 2
Mounting Position	1 ... 6
Mounting on DIN Rail	TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
	TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Minimum Mounting Distance	Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
	Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
	Electrical Conductive Board, Vertical 75 mm
	Other Device Same Type, Horizontal 0 mm
	Other Device Same Type, Vertical 150 mm
Actuator Type	Rotary Handle
Contact Position Indication	ON / OFF / TRIP
Standards	IEC/EN 60947-1
	IEC/EN 60947-2
	IEC/EN 60947-4-1
	UL 60947-1
	UL 60947-4-1
	IEC 60335-2-40 A2L
Remarks	UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx
Technical UL/CSA
Short-Circuit Current Rating (SCCR)	Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kA
	Manual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kA
	Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kA
	Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kA
	Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kA
	Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kA
	Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kA
	Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V AC
Full Load Amps Motor Use	(200 V AC) Three Phase 0.25 A
	(208 V AC) Three Phase 0.25 A
	(220 ... 240 V AC) Three Phase 0.25 A
	(440 ... 480 V AC) Three Phase 0.25 A
	(550 ... 600 V AC) Three Phase 0.25 A
Locked Rotor Amps	(200 V AC) Three Phase 1.5 A
	(208 V AC) Three Phase 1.5 A
	(220 ... 240 V AC) Three Phase 1.5 A
	(440 ... 480 V AC) Three Phase 1.5 A
	(550 ... 600 V AC) Three Phase 1.5 A
General Use Rating UL/CSA	(600 V AC) 0.25 A
Connecting Capacity Main Circuit UL/CSA	Flexible 1/2x 16-12 AWG
	Stranded 1/2x 16-12 AWG
Tightening Torque UL/CSA	Main Circuit 10 ... 12 in·lb
Environmental
Ambient Air Temperature	Around the Enclosure 0 ... +40 °C
	Operation -25 ... +70 °C
	Operation Compensated -25 ... +60 °C
	Storage -50 ... +80 °C
Ambient Air Temperature Compensation	Yes
Maximum Operating Altitude Permissible	2000 m
Resistance to Shock acc. to IEC 60068-2-27	11 ms Pulse 25g
Resistance to Vibrations	5g 3 ... 150 Hz
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SAA963005-4502
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	2CMT2023-006539
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
End Of Life Disassembling Instructions	1SAC200332H0001
Environmental Product Declaration - EPD	1SAC200360H0001
	1SAC200385H0001
Certificates and Declarations
A2L Certificate – IEC	1SAA963000-4601
ABS Certificate	1SAA963001-0101
ATEX Certificate	1SAA963000-3902
BV Certificate	1SAA963001-0202
CB Certificate	1SAA963002-2002
	1SAA963007-2002
CCC Certificate	2024010307654702
	2024010307658958
CQC Certificate	CQC2010010307387700
	CQC2019010307243864
Cut-off Current Characteristic	1SAM300508F0001
	1SAM300508F0003
Declaration of Conformity - CCC	2020980307003526
	2020980307003041
Declaration of Conformity - CE	1SAD101100-3402
Declaration of Conformity - UKCA	1SAD201100-3402
DNV GL Certificate	1SAA963001-0304
EAC Certificate	1SAA963000-2701
IECEx Certificate	1SAA963000-4001
KC Certificate	1SAA963002-1502
LR Certificate	1SAA963001-0502
RINA Certificate	1SAA963002-0802
RMRS Certificate	1SAA918000-0704
UL Certificate	E137861-20090225
	E345003-20090225
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	92 mm
Package Level 1 Depth / Length	95 mm
Package Level 1 Height	50 mm
Package Level 1 Gross Weight	0.23 kg
Package Level 1 EAN	4013614400025
Package Level 2 Units	carton 40 piece
Package Level 2 Width	280 mm
Package Level 2 Depth / Length	395 mm
Package Level 2 Height	210 mm
Package Level 2 Gross Weight	9.586 kg
Package Level 2 EAN	4013614408922
External Classifications and Standards
Object Classification Code	F
ETIM 9	EC000074 - Motor protection circuit-breaker
ETIM 10	EC000074 - Motor protection circuit-breaker
eClass	V11.0 : 27370401
UNSPSC	39121521
IDEA Granular Category Code (IGCC)	4731 >> Manual Starters
E-Number (Finland)	3705986
E-Number (Norway)	4364071
E-Number (Sweden)	3112118
