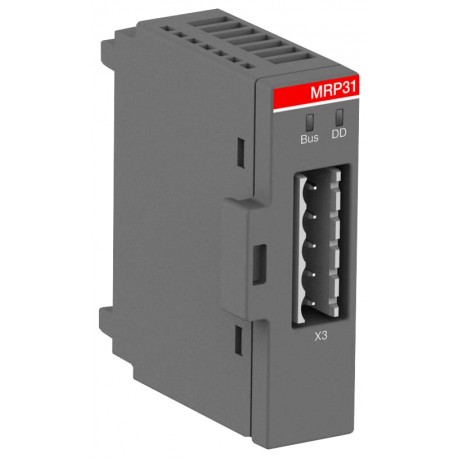

ABB 1SAJ251000R0001 1SAJ251000R0001 ABB Modbus RTU Interface View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SAJ251000R0001 ABB Modbus RTU Interface

1SAJ251000R0001

251000

ABB

1 Pcs.

Modbus RTU Interface MRP31 Modbus Interface MRP31.0 Modbus RTU Interface

Automation > Fieldbus, decentr. periphery - communication module
UMC and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85176200
Product Main TypeMRP31.0
Popular Downloads
Data Sheet, Technical Information2CDC194005D0201
Instructions and Manuals1SAC200307M0001
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC181492_EPLAN
Dimensions
Product Net Width22.5 mm
Product Net Depth / Length54 mm
Product Net Height64 mm
Product Net Weight39 g
Technical
Connecting Capacity1x 0.2-2.5 mm²
Mounting TypeUMC100.3/Single Mounting
Mounting on DIN RailWith Single Mounting KIt
Power LossApproximately 0.6 W
Rated Control Supply Voltage (Us)24 V DC
Recommended Screw DriverPozidriv 1
StandardsCAN/CSA C22.2 No.61010-1
CAN/CSA C22.2 No.61010-2-201
IEC/EN 61131-2
UL 61010-1
UL 61010-2-201
Suitable ForUMC100.3
Terminal TypeScrew Terminals
Tightening TorqueAuxiliary Circuit 0.5 N·m
Control Circuit 0.5 N·m
Wire Stripping Length7 mm
Technical UL/CSA
Connecting Capacity UL/CSAFlexible with Ferrule 1x 28-12 AWG
Rigid 1x 28-12 AWG
Environmental
Degree of ProtectionIP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SAA983001-4501
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006538
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
ABS Certificate9AKK106930A7739
ATEX CertificateNot available
CB CertificateDK-41377-UL
cULus Certificate201410022014_10_02_E179611E179811
Declaration of Conformity - CE1SVD981073
DNV CertificateTAA000015X-revision4
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width112 mm
Package Level 1 Depth / Length26 mm
Package Level 1 Height67 mm
Package Level 1 Gross Weight45 g
Package Level 1 EAN4013614496981
External Classifications and Standards
eClassV11.0 : 27242608
E-Number (Norway)4552632
ETIM 6EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 7EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 8EC001604 - Fieldbus, decentr. periphery - communication module
ETIM 9EC001604 - Fieldbus, decentr. periphery - communication module
IDEA Granular Category Code (IGCC)3587 >> Fieldbus, decentr. periphery - communication module
Object Classification CodeK
UNSPSC32151802

ETIM for 1SAJ251000R0001 PLC's (EC001604)
Feature Name Feature Value
Supply voltage AC 50 Hz (EF007532) 2 V
Supply voltage AC 60 Hz (EF007533) 24 V
Supply voltage DC (EF007534) 24 V
Voltage type (supply voltage) (EF002991) DC
Supporting protocol for TCP/IP (EF003050) No
Supporting protocol for PROFIBUS (EF003052) No
Supporting protocol for CAN (EF003053) No
Supporting protocol for INTERBUS (EF003054) No
Supporting protocol for ASI (EF003051) No
Supporting protocol for KNX (EF003055) No
Supporting protocol for Modbus (EF003057) Yes
Supporting protocol for Data-Highway (EF003058) No
Supporting protocol for DeviceNet (EF003059) No
Supporting protocol for SUCONET (EF003060) No
Supporting protocol for LON (EF003017) No
Supporting protocol for SERCOS (EF006657) No
Supporting protocol for PROFINET IO (EF007525) No
Supporting protocol for PROFINET CBA (EF007524) No
Supporting protocol for Foundation Fieldbus (EF007522) No
Supporting protocol for EtherNet/IP (EF007521) No
Supporting protocol for AS-Interface Safety at Work (EF007519) No
Supporting protocol for DeviceNet Safety (EF007520) No
Supporting protocol for INTERBUS-Safety (EF006662) No
Supporting protocol for PROFIsafe (EF007526) No
Supporting protocol for SafetyBUS p (EF007527) No
Supporting protocol for other bus systems (EF003062) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
Radio standard eGPRS (EF009703) No
Radio standard GSM (EF008524) No
Radio standard LTE (EF009709) No
Radio standard UMTS (EF008525) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) Yes
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) Yes
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 22.5 mm
Height (EF000040) 64 mm
Depth (EF000049) 54 mm
