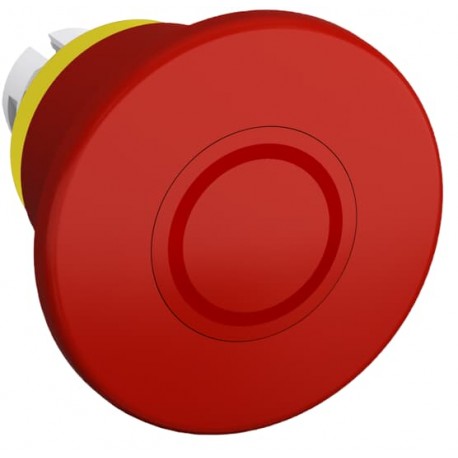

ABB 1SFA611514R1001 1SFA611514R1001 ABB MPMP4-10R Emergency Stop View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA611514R1001 ABB MPMP4-10R Emergency Stop

1SFA611514R1001

611514

ABB

1 Pcs.

MPMP4-10R Emergency Stop EMERGENCY MUSHROOM MPMP4-10R

Automation > Front element for mushroom push-button
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for integration into industrial safety circuits, the Abb 1SFA611514R1001 emergency stop provides immediate physical shutoff capability for automated machinery. Operators depress the prominent red cap to interrupt power systems in urgent scenarios, relying on a pull-release mechanism to secure the circuit until intentional resetting occurs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Marketing Video: 1SFC151037V0001
  • Product Net Width: 0.06 m
  • Product Net Height: 0.06 m
  • Product Net Depth / Length: 0.067 m
  • Product Net Weight: 0.048 kg
  • Ambient Air Temperature: Operation -25 ... +70 °C
  • Color: Red
  • Actuator Type: Mushroom 60 mm
  • Illumination: Non-illuminated
  • Function: Maintained
  • Sub-Function: Pull release
  • Enclosure Type NEMA: Type1

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Marketing Video1SFC151037V0001
Dimensions
Product Net Width0.06 m
Product Net Height0.06 m
Product Net Depth / Length0.067 m
Product Net Weight0.048 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorRed
Actuator TypeMushroom 60 mm
IlluminationNon-illuminated
FunctionMaintained
Sub-FunctionPull release
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Mechanical Durability100000 cycle
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cULus Certificate9AKK107046A9924
Declaration of Conformity - CE2CMT2015-005444
Declaration of Conformity - UKCA2CMT2020-006122
DNV GL CertificateE-14107
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.11 m
Package Level 1 Depth / Length0.15 m
Package Level 1 Height0.06 m
Package Level 1 Gross Weight0.048 kg
Package Level 1 EAN7320500307359
External Classifications and Standards
Object Classification CodeS
ETIM 6EC001038 - Front element for mushroom push-button
ETIM 7EC001038 - Front element for mushroom push-button
ETIM 8EC001038 - Front element for mushroom push-button
eClassV11.0 : 27371210
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2338187
E-Number (Sweden)3716553
