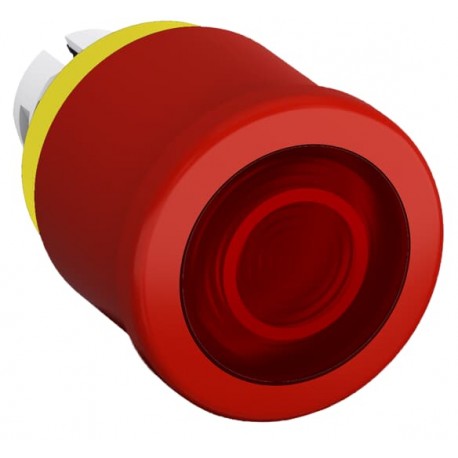

1SFA611511R1101 ABB MPMP3-11R Emergency Stop
1SFA611511R1101
611511
ABB
1 Pcs.
Automation > Front element for mushroom push-button
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB MPMP3-11R Emergency Stop operator unit serves as a primary safety interlock device designed to halt hazardous industrial machine movements immediately upon activation. Safety mushroom switches feature robust mechanical latching mechanisms to ensure power remains disconnected until manually reset.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 8536508000
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Marketing Video: 1SFC151037V0001
- Product Net Width: 0.042 m
- Product Net Height: 0.042 m
- Product Net Depth / Length: 0.067 m
- Product Net Weight: 0.041 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Color: Red
- Actuator Type: Mushroom 40 mm
- Illumination: Illuminated
- Function: Maintained
- Sub-Function: Pull release
- Enclosure Type NEMA: Type1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536508000 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.042 m |
| Product Net Height | 0.042 m |
| Product Net Depth / Length | 0.067 m |
| Product Net Weight | 0.041 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Red |
| Actuator Type | Mushroom 40 mm |
| Illumination | Illuminated |
| Function | Maintained |
| Sub-Function | Pull release |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 100000 cycle |
| Environmental | |
| Degree of Protection | Front IP66 |
| Terminals IP20 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9924 |
| Declaration of Conformity - CE | 2CMT2015-005444 |
| Declaration of Conformity - UKCA | 2CMT2020-006122 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.042 m |
| Package Level 1 Gross Weight | 0.041 kg |
| Package Level 1 EAN | 7320500307168 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC001038 - Front element for mushroom push-button |
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| ETIM 8 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2338191 |
| E-Number (Sweden) | 3716555 |
