ABB 1SFA611523R1001 1SFA611523R1001 ABB MPET4-10R Emergency Stop View larger
Images are for illustrative purposes only. Please refer to data sheet for details

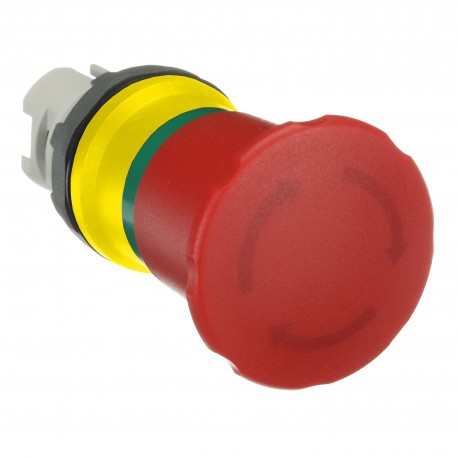

1SFA611523R1001 ABB MPET4-10R Emergency Stop

1SFA611523R1001

611523

ABB

1 Pcs.

MPET4-10R Emergency Stop MPET4-10R Emergency Mushroom

Automation > Front element for mushroom push-button
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb emergency stop serves as a vital safety component on control panels, halting dangerous machinery movements immediately when pressed. The maintained latching mechanism secures the circuit condition until a deliberate physical intervention resets the system. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 40 mm
  • Hole diameter (EF000079): 22 mm
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): Yes

More info

▲

Modular Emergency Stop - Twist release - Mushroom 40mm - Red - Non-illuminated - - No contact block

Ordering

  • EAN:
    7320500372548
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85369001

Dimensions

  • Product Net Width:
    0.040m
  • Product Net Height:
    0.040m
  • Product Net Depth:
    0.068m
  • Product Net Weight:
    0.036kg

Container Information

  • Package Level 1 Width:
    0.11 m
  • Package Level 1 Height:
    0.04 m
  • Package Level 1 Length:
    0.15 m
  • Package Level 1 Gross Weight:
    0.036 kg

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Actuator Type:
    Mushroom 40mm
  • Bezel Material:
    n/a
  • Block:
    No contact block
  • Color:
    Red
  • Function:
    Twist release
  • Illumination:
    Non-illuminated
  • Product Main Type:
    MPET4
  • Product Name:
    Emergency Stop
  • Product Range:
    Modular
  • Product Type:
    MPET
  • RoHS Date:
    0635 4

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    3705076
  • ETIM 4:
    EC002024 - Accessories for control circuit devices
  • ETIM 5:
    EC002024 - Accessories for control circuit devices
  • Object Classification Code:
    S
  • UNSPSC:
    39121500

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
