View larger
Images are for illustrative purposes only. Please refer to data sheet for details

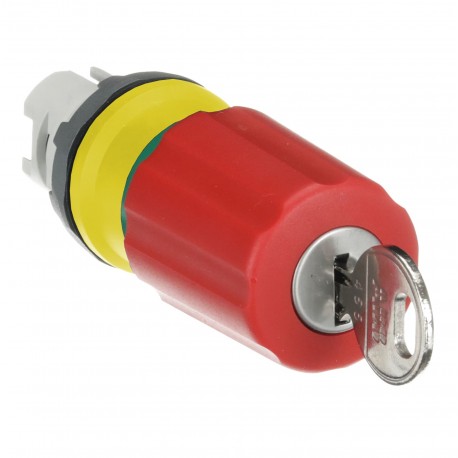

1SFA611522R1101 ABB MPEK3-11R Emergency Stop
1SFA611522R1101
611522
ABB
1 Pcs.
MPEK3-11R Emergency Stop
EMERGENCY MUSHROOM MPEK3-11R
Automation > Front element for mushroom push-button
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.03 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.068 m |
| Product Net Weight | 0.065 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Red |
| Actuator Type | Mushroom 30mm |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Key release |
| Key Code | Key code 71 |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 100000 cycle |
| Environmental | |
| Degree of Protection | Front IP66 |
| Terminals IP20 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0a25a710-0cff-4a22-96fc-923cd3c9518b Sweden |
| Simplified SCIP | 5d5306b8-00d0-40b3-9352-f267ee155cf6 Germany |
| b2957838-37cf-4b2b-ad7e-8c4ac45ee5e9 Poland | |
| 541bfe46-4591-42b7-9483-0f4e44c213a4 Czech Republic | |
| d998aa87-728d-493e-b7e0-1307525ebe90 Germany | |
| 5841177e-8553-447a-8db2-e0ad71f7ff9a Croatia | |
| 3f6a8d45-4e20-4a92-a781-4ef8f2cf7216 Denmark | |
| 05da379b-0ddc-43da-8d06-7399da380582 Belgium | |
| daaadc1c-2056-45a0-b748-eae55154d720 Germany | |
| 8d83a624-45d2-419a-893c-adb9fd6cf1f3 Italy | |
| 9d0fd8b3-3285-4674-976a-ae1c32df451d Norway | |
| ea6aebd9-f480-4dc8-aa1b-3d2ba226a19d Finland | |
| 16cef243-094c-4859-9e19-d67ab69eb987 Poland | |
| dd72136d-a502-4f8f-b526-9af40ce40afb Hungary | |
| 7e5d0bed-d53a-4f8b-b30f-83e5c76d63f3 Spain | |
| dcedbd06-319f-43cd-849c-ae2b94b92c5d Belgium | |
| c1361e55-9df9-46e8-9a48-24cd931ac171 France | |
| a025f4a5-d49b-4f2c-b387-e8b9a96cb2c9 Germany | |
| b265c713-ab88-4081-b7ed-2ae153de4cc1 France | |
| 4839e334-725b-464c-b6cf-3e120dfc3564 Germany | |
| 4ce1a449-220f-4c2f-a5e0-e9d3eaff5e7f Sweden | |
| 9512f7a5-26a4-49de-af8c-4a30787405cd Poland | |
| 94b1cf26-9a68-46bb-87c6-346aad816e83 Bulgaria | |
| 63d995cf-d28c-4517-90da-34992c98a9a5 Portugal | |
| 85563c58-594c-4cb8-b681-18a1e5856839 Hungary | |
| cd936b54-18ea-41dd-a557-6c9e3bbd6b43 Greece | |
| 2fd7f31f-052f-4b6d-a8bc-bf7a4da8926c Netherlands | |
| 381404a7-bdfe-4bd4-8fb6-72054e9c9117 Estonia | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK108470A5430 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006122 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.135 m |
| Package Level 1 Depth / Length | 0.145 m |
| Package Level 1 Height | 0.035 m |
| Package Level 1 Gross Weight | 0.068 kg |
| Package Level 1 EAN | 7320500372692 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC001038 - Front element for mushroom push-button |
| ETIM 7 | EC001038 - Front element for mushroom push-button |
| ETIM 8 | EC001038 - Front element for mushroom push-button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2315850 |
| E-Number (Norway) | 4372202 |
| E-Number (Sweden) | 3705073 |
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 30 mm |
| Hole diameter (EF000079) | 22 mm |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | Yes |
