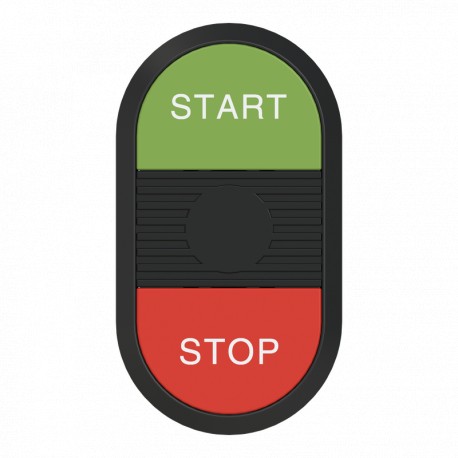

1SFA611133R1106 ABB MPD4-11B Double Pushbutton
1SFA611133R1106
611133
ABB
1 Pcs.
Automation > Front element for push button
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SFA611133R1106 MPD4-11B is a dual-actuator double pushbutton that integrates two distinct command functions into a single space-saving panel cutout. Double pushbuttons are widely used in industrial automation to control start and stop functions or forward and reverse operations from one station. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 8536501999
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- Dimension Diagram: 1SFC151800F0001
- Marketing Video: 1SFC151037V0001
- Product Net Width: 0.054 m
- Product Net Height: 0.03 m
- Product Net Depth / Length: 0.038 m
- Product Net Weight: 0.025 kg
- Ambient Air Temperature: Operation -25 ... +70 °C
- Color: Green/Red Actuator
- Actuator Type: Flush/Flush
- Bezel Material: Plastic
- Illumination: Non-illuminated
- Function: Momentary
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536501999 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimension Diagram | 1SFC151800F0001 |
| Marketing Video | 1SFC151037V0001 |
| Dimensions | |
| Product Net Width | 0.054 m |
| Product Net Height | 0.03 m |
| Product Net Depth / Length | 0.038 m |
| Product Net Weight | 0.025 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Green/Red Actuator |
| Actuator Type | Flush/Flush |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Device Marking | StartStop |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 2 million |
| Environmental | |
| Degree of Protection | Front IP66 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.03 m |
| Package Level 1 Gross Weight | 0.027 kg |
| Package Level 1 EAN | 7320500277577 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC000221 - Front element for push button |
| ETIM 7 | EC000221 - Front element for push button |
| ETIM 8 | EC000221 - Front element for push button |
| eClass | V11.0 : 27371210 |
| UNSPSC | 39122216 |
| IDEA Granular Category Code (IGCC) | 5212 >> Push button for distribution board |
| E-Number (Finland) | 2338007 |
