View larger
Images are for illustrative purposes only. Please refer to data sheet for details

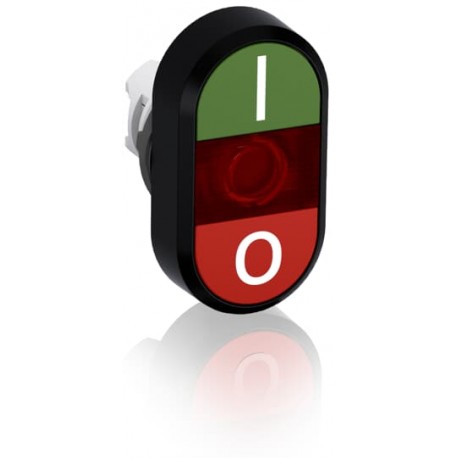

1SFA611131R1106 ABB MPD2-11B Double Pushbutton
1SFA611131R1106
611131
ABB
1 Pcs.
MPD2-11B Double Pushbutton
MPD2-11B DOUBLE PUSH BUTTON
Automation > Front element for push button
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Modular Double Pushbutton - Momentary - Flush/Flush - Green/Red Actuator, Black Indicator - NonIlluminated - No contact block - Lower Button: O - Upper Button: I
Ordering
- EAN:
- 7320500308004
- Minimum Order Quantity:
- 10 piece
- Customs Tariff Number:
- 85369001
Dimensions
- Product Net Width:
- 0.054m
- Product Net Height:
- 0.030m
- Product Net Depth:
- 0.038m
- Product Net Weight:
- 0.025kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.11 m
- Package Level 1 Height:
- 0.03 m
- Package Level 1 Length:
- 0.15 m
- Package Level 1 Gross Weight:
- 0.025 kg
Environmental
- Ambient Air Temperature:
- Operation -25 … +70 °C
Storage -30 … +85 °C
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Additional Information
- Actuator Type:
- Flush/Flush
- Block:
- No contact block
- Color:
- Black indicator
- Function:
- Momentary
- IIT Publishing Status:
- Level 0 - Information enabled
- Illumination:
- Non-illuminated
- Lower Button Color:
- Red
- Lower Button Text:
- O
- Mechanical Durability:
- 2 million
- Product Main Type:
- MPD2
- Product Name:
- Double Pushbutton
- Product Range:
- Modular
- Product Type:
- MPD
- RoHS Date:
- 0635 4
- Symbol / Text:
- I/O
- Upper Button Color:
- Green
- Upper Button Text:
- I
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SFC151003C0201
- Declaration of Conformity - CE:
- 1SFA1-83
- RoHS Information:
- 1SFC151011D0203
Classifications
- ETIM 4:
- EC002024 - Accessories for control circuit devices
- ETIM 5:
- EC002024 - Accessories for control circuit devices
- Object Classification Code:
- S
- UNSPSC:
- 39121512
