ABB 1SFA611142R1106 1SFA611142R1106 ABB MPD13-11B Double Pushbutton View larger
Images are for illustrative purposes only. Please refer to data sheet for details

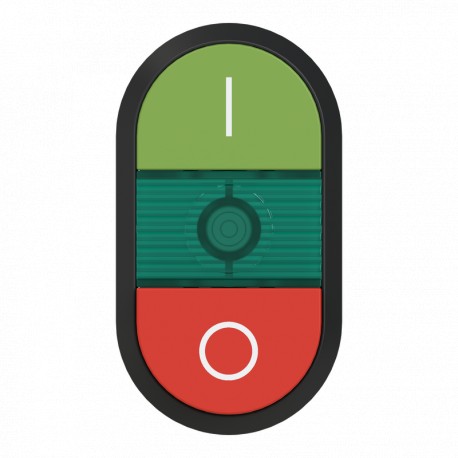

1SFA611142R1106 ABB MPD13-11B Double Pushbutton

1SFA611142R1106

611142

ABB

1 Pcs.

MPD13-11B Double Pushbutton DOUBLE PUSH BUTTON MPD13-11B

Automation > Front element for push button
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb double pushbutton (part number 1SFA611142R1106) provides dual control actuators within a single housing footprint, allowing operators to execute distinct commands such as start and stop from one central location. Industrial machine builders rely on double pushbuttons to optimize panel space and streamline user operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 8536508000
  • Data Sheet, Technical Information: 1SFC151007C02__
  • Instructions and Manuals: 1SFC151011M0201
  • Dimension Diagram: 1SFC151799F0001
  • Marketing Video: 1SFC151037V0001
  • Product Net Width: 0.054 m
  • Product Net Height: 0.03 m
  • Product Net Depth / Length: 0.043 m
  • Product Net Weight: 0.025 kg
  • Ambient Air Temperature: Operation -25 ... +70 °C
  • Color: Green/Red Actuator
  • Actuator Type: Flush/Extended
  • Bezel Material: Plastic
  • Illumination: Non-illuminated
  • Function: Momentary

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimension Diagram1SFC151799F0001
Marketing Video1SFC151037V0001
Dimensions
Product Net Width0.054 m
Product Net Height0.03 m
Product Net Depth / Length0.043 m
Product Net Weight0.025 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorGreen/Red Actuator
Actuator TypeFlush/Extended
Bezel MaterialPlastic
IlluminationNon-illuminated
FunctionMomentary
Device MarkingIo
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Mechanical Durability2 million
Environmental
Degree of ProtectionFront IP66
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE CategoryProduct Not in WEEE Scope
Certificates and Declarations
cULus Certificate9AKK107046A9925
Declaration of Conformity - CE2CMT2015-005452
Declaration of Conformity - UKCA2CMT2020-006121
DNV GL CertificateE-14107
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.11 m
Package Level 1 Depth / Length0.15 m
Package Level 1 Height0.03 m
Package Level 1 Gross Weight0.028 kg
Package Level 1 EAN7320500280294
External Classifications and Standards
Object Classification CodeS
ETIM 6EC000221 - Front element for push button
ETIM 7EC000221 - Front element for push button
ETIM 8EC000221 - Front element for push button
eClassV11.0 : 27371210
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2338019
E-Number (Sweden)3705810

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
