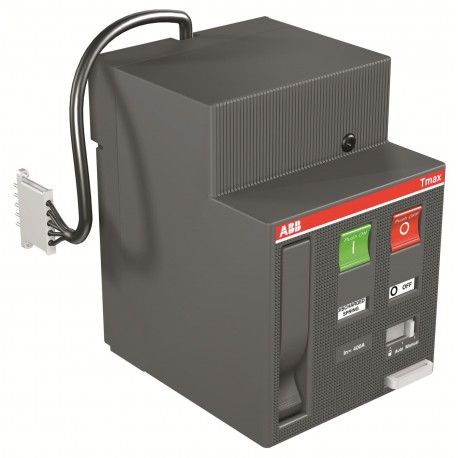

ABB 1SDA054894R1 1SDA054894R1 ABB MOE T4-T5 24 Vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054894R1 ABB MOE T4-T5 24 Vdc

1SDA054894R1

054894

ABB

1 Pcs.

MOE T4-T5 24 Vdc MOE 24VDC MOTOR CONTROL - T4/5

Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA054894R1 MOE T4-T5 24 Vdc is a motorized operating mechanism designed to enable remote control and automation capabilities for molded case circuit breakers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT5M8
  • E-Number (Finland): 3655650
  • EAN: 8015644560225
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.214 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 131 mm
  • Package Level 1 Height: 136 mm
  • Package Level 1 Depth / Length: 163 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT5M8
E-Number (Finland)3655650
EAN8015644560225
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.214 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width131 mm
Package Level 1 Height136 mm
Package Level 1 Depth / Length163 mm
Package Level 1 Gross Weight2.331 kg
Package Level 1 EAN8015644560225
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT4, T5
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Current TypeDC
Rated Voltage (Ur)24 V DC
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000436R0621
External Classifications and Standards
ETIM 9EC001030 - Motor operator for power circuit-breaker
ETIM 10EC001030 - Motor operator for power circuit-breaker
IDEA Granular Category Code (IGCC)4872 >> Motor operator for power circuit-breaker
Object Classification CodeQ
UNSPSC39121601
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412
