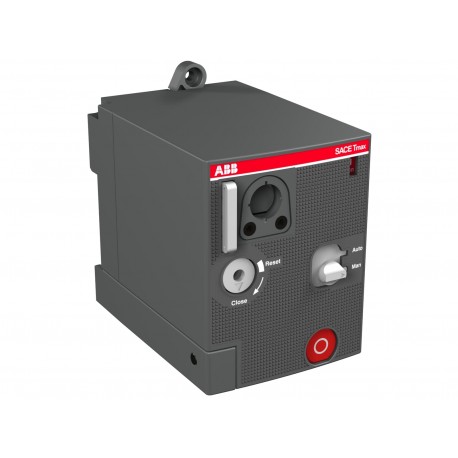

1SDA066458R1 ABB MOD XT1-XT3 48...60V dc
1SDA066458R1
066458
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SDA066458R1 motorized operating mechanism is designed to attach to molded case circuit breakers, providing automated remote opening, closing, and spring charging functionality. These systems enhance operational safety in complex industrial electrical installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXTBMOD48-60
- EAN: 8015644692810
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.4 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 94 mm
- Package Level 1 Height: 106 mm
- Package Level 1 Depth / Length: 149 mm
- Package Level 1 Gross Weight: 1.46 kg
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXTBMOD48-60 |
| EAN | 8015644692810 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 94 mm |
| Package Level 1 Height | 106 mm |
| Package Level 1 Depth / Length | 149 mm |
| Package Level 1 Gross Weight | 1.46 kg |
| Package Level 1 EAN | 8015644692810 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Current Type | DC |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Rated Voltage (Ur) | 48 ... 60 V DC |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT1, XT3 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0632 |
| Classifications | |
| ETIM 7 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 8 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| IDEA Granular Category Code (IGCC) | 4872 >> Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
