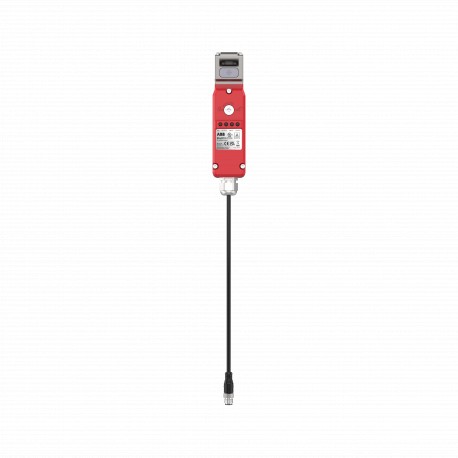

2TLA050007R0112 ABB MKey9, Sol M20, 24V, Std. Key
2TLA050007R0112
050007
ABB
1 Pcs.
Automation > Position switch with guard locking
Position switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 2TLA050007R0112 MKey9 safety mechanical switch provides reliable interlocking for movable machine guards, safeguarding operators from hazardous motion zones. These safety switches are deployed across automated assembly lines to ensure production equipment cannot start while access doors remain open.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 8536500700
- Product Main Type: MKey
- Product Name: Safety Sensors, Switches and Locks
- Function: Safety mechanical switch for interlocking with locking (Safety)
- Special Functions: With auxiliary release
- Data Sheet, Technical Information: 2TLC010001C0202
- CAD Dimensional Drawing: 2CDC001079B0201
- Marketing Video: 2TLC010018N0201
- Instructions and Manuals: 2TLC172246M0201
- Wiring Diagram: 2TLC010025T0001
- Product Net Depth / Length: 46 mm
- Product Net Height: 160 mm
- Product Net Width: 46 mm
- Product Net Weight: 0.603 kg
- CAD Dimensional Drawing: 2CDC001079B0201
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | MKey |
| Product Name | Safety Sensors, Switches and Locks |
| Function | Safety mechanical switch for interlocking with locking (Safety) |
| Special Functions | With auxiliary release |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172246M0201 |
| Wiring Diagram | 2TLC010025T0001 |
| Dimensions | |
| Product Net Depth / Length | 46 mm |
| Product Net Height | 160 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.603 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| B10d Value | Operations at 100 mA Load 2.5 million |
| Technical | |
| Number of Contacts NC | 2 |
| Number of Contacts NO | 2 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.69 kg |
| Package Level 1 EAN | 7350024466409 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270611 |
| ETIM 7 | EC002593 - Position switch with guard locking |
| ETIM 8 | EC002593 - Position switch with guard locking |
| ETIM 9 | EC002593 - Position switch with guard locking |
| Object Classification Code | B |
| E-Number (Finland) | 2307349 |
| E-Number (Sweden) | 3860226 |
