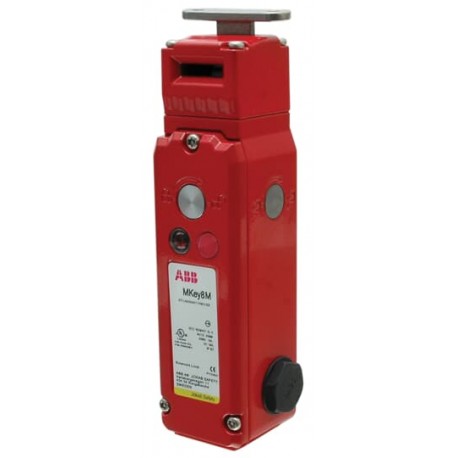

2TLA050013R0132 ABB MKey8M, Sol M20, 24V, Std. Key
2TLA050013R0132
050013
ABB
1 Pcs.
MKey8M, Sol M20, 24V, Std. Key
MKey8M, Block x Sun, M20, 24Vdc, Act.Estn
MKey8M 24VDC Switch
Automation > Position switch with guard locking
Position switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | MKey |
| Product Name | Switch |
| Function | Safety mechanical switch for interlocking with locking (Process) |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172245M0201 |
| Wiring Diagram | 2TLC010025T0002 |
| Dimensions | |
| Product Net Depth / Length | 47 mm |
| Product Net Height | 176 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.74 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| B10d Value | Operations at 100 mA Load 2.5 million |
| Technical | |
| Number of Contacts NC | 1 |
| Number of Contacts NO | 3 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Die cast |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Depth / Length | 60 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.867 kg |
| Package Level 1 EAN | 7350024466508 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270611 |
| ETIM 7 | EC002593 - Position switch with guard locking |
| ETIM 8 | EC002593 - Position switch with guard locking |
| ETIM 9 | EC002593 - Position switch with guard locking |
| Object Classification Code | B |
| E-Number (Finland) | 2307353 |
| E-Number (Sweden) | 3860223 |
| Feature Name | Feature Value |
|---|---|
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Guard locking force (EF007552) | 3000 N |
| With escape release (EF007172) | No |
| Type of guard locking (EF012608) | Quiescent current principle |
| With auxiliary release (EF011964) | No |
| Rated control supply voltage magnet drive DC (EF007070) | 24 V |
| Width sensor (EF007094) | 46 mm |
| Height of sensor (EF007283) | 176 mm |
| Length of sensor (EF007334) | 47 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Type of switching contact (EF003591) | Slow-action switch |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 3 A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 3 A |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 A |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Construction type housing (EF004008) | Special construction |
| Housing material (EF001596) | Metal |
| Coating housing (EF001601) | Powder coated |
| Type of interface (EF006977) | Other |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Other |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 1 |
