View larger
Images are for illustrative purposes only. Please refer to data sheet for details

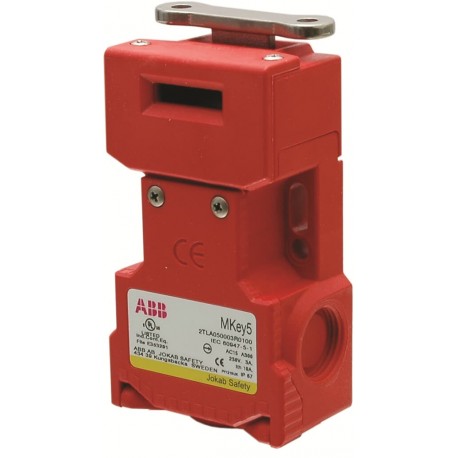

2TLA050003R0100 ABB MKey5, M20, 2NC/1NO, Std. Key
2TLA050003R0100
050003
ABB
1 Pcs.
MKey5, M20, 2NC/1NO, Std. Key
MKey5, M20, 2NC/1NA, Standard Actuator
MKey5 Safety Sensors, Switches and Locks
Automation > Position switch with separate actuator
Position switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | MKey |
| Product Name | Safety Sensors, Switches and Locks |
| Function | Safety mechanical switch for interlocking |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172244M0201 |
| Dimensions | |
| Product Net Depth / Length | 34 mm |
| Product Net Height | 98 mm |
| Product Net Width | 58 mm |
| Product Net Weight | 0.13 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| B10d Value | Operations at 100 mA Load 2.5 million |
| Technical | |
| Number of Contacts NC | 2 |
| Number of Contacts NO | 1 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 80 °C |
| Degree of Protection | IP67 |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.205 kg |
| Package Level 1 EAN | 7350024466232 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270610 |
| ETIM 7 | EC002592 - Position switch with separate actuator |
| ETIM 8 | EC002592 - Position switch with separate actuator |
| ETIM 9 | EC002592 - Position switch with separate actuator |
| Object Classification Code | B |
| E-Number (Finland) | 2307345 |
| E-Number (Sweden) | 3860199 |
| Feature Name | Feature Value |
|---|---|
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Width sensor (EF007094) | 58 mm |
| Height of sensor (EF007283) | 100.4 mm |
| Length of sensor (EF007334) | 34.5 mm |
| Forced opening (EF006694) | Yes |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of switching contact (EF003591) | Slow-action switch |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 3 A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 3 A |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 A |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.2 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.2 A |
| Construction type housing (EF004008) | Special construction |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Type of interface (EF006977) | Other |
| Type of interface for safety communication (EF003956) | Other |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 1 |
