View larger
Images are for illustrative purposes only. Please refer to data sheet for details

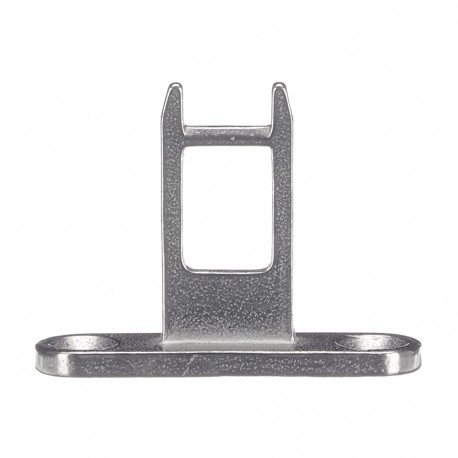

2TLA050040R0202 ABB MKey 4,5,6,8,9 Std.Key Metal Head
2TLA050040R0202
45689
ABB
1 Pcs.
MKey 4,5,6,8,9 Std.Key Metal Head
MKey, Standard Actuator Stainless Steel Head
MKey Key 2 Actuator
Automation > Mechanic interlock for switch
Position switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | Key switch accessory |
| Product Name | Actuator |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC172244M0201 |
| Dimensions | |
| Product Net Depth / Length | 14 mm |
| Product Net Height | 40 mm |
| Product Net Width | 54 mm |
| Product Net Weight | 0.031 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Technical | |
| Suitable For | MKey5 SSH |
| MKey5+ SSH | |
| MKey5Z | |
| MKey5+Z | |
| MKey9M 24VDC | |
| MKey8M 24VDC | |
| MKey9 24VDC | |
| MKey9 24VDC No Key | |
| MKey8 24VDC | |
| MKey8ER 24VDC | |
| MKey8Z 24 VDC | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Height | 14 mm |
| Package Level 1 Gross Weight | 31 g |
| Package Level 1 EAN | 7350024467420 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270605 |
| ETIM 7 | EC001487 - Actuator for position switch with separate actuator |
| ETIM 8 | EC001487 - Actuator for position switch with separate actuator |
| ETIM 9 | EC001487 - Actuator for position switch with separate actuator |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| Object Classification Code | R |
