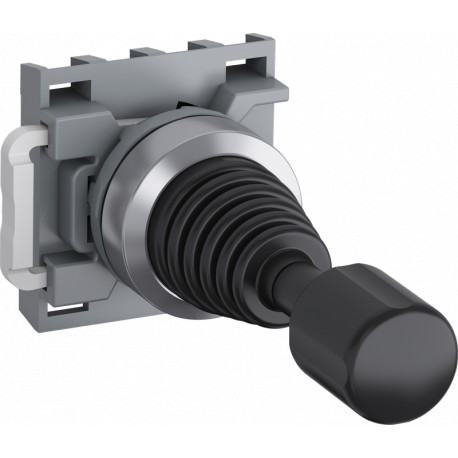

1SFA611712R6006 ABB MJS12-60B Joystick
1SFA611712R6006
611712
ABB
1 Pcs.
MJS12-60B Joystick
JOYSTICK MJS12-60B
Automation > Control switch, Joystick
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| Dimensions | |
| Product Net Width | 0.04 m |
| Product Net Height | 0.043 m |
| Product Net Depth / Length | 0.097 m |
| Product Net Weight | 0.062 kg |
| Technical | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Color | Black |
| Actuator Type | Joystick with latching function |
| Bezel Material | Metal |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 4-position |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type4 | |
| Type4X | |
| Mechanical Durability | 0.5 million |
| Environmental | |
| Degree of Protection | Front IP66 |
| Front IP67 | |
| Front IP69K | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CE | 2CMT2015-005452 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.15 m |
| Package Level 1 Height | 0.048 m |
| Package Level 1 Gross Weight | 0.065 kg |
| Package Level 1 EAN | 7320500375808 |
| External Classifications and Standards | |
| Object Classification Code | S |
| ETIM 6 | EC000632 - Control switch, Joystick |
| ETIM 7 | EC000632 - Control switch, Joystick |
| ETIM 8 | EC000632 - Control switch, Joystick |
| eClass | V11.0 : 27371404 |
| UNSPSC | 39122227 |
| IDEA Granular Category Code (IGCC) | 5280 >> Joystick switch or control |
| E-Number (Finland) | 2312119 |
| E-Number (Norway) | 4372972 |
| E-Number (Sweden) | 3705025 |
| Feature Name | Feature Value |
|---|---|
| Centre mounting, hole diameter (EF002424) | 22 mm |
| Joy stick length (EF006524) | 71 mm |
| Number of actuation directions (EF002425) | 4 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| With retraction in 0-position (EF002428) | Yes |
| Locking in 0-position (EF006283) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
