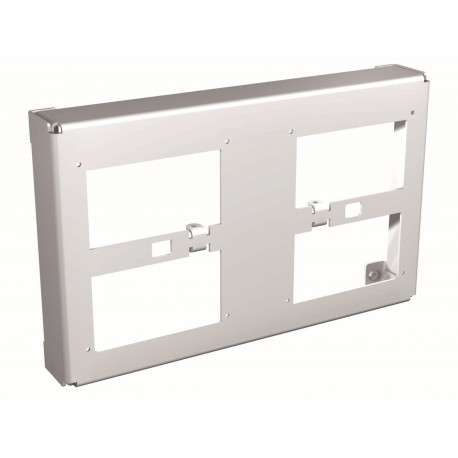

1SDA066638R1 ABB MIR-VR XT1..XT4
1SDA066638R1
066638
ABB
1 Pcs.
Automation > Mechanic interlock for switch
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing vertical interlocking capabilities, the 1SDA066638R1 ABB MIR-VR XT1..XT4 is a heavy-duty mechanical interlock system engineered for multi-tier circuit breaker arrangements. Vertical interlock mechanisms restrict the simultaneous closing of stacked switching devices to protect personnel and maintain electrical distribution integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KXTAMIRVR
- E-Number (Norway): 4381681
- EAN: 8015644004170
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 2.7 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 240 mm
- Package Level 1 Height: 85 mm
- Package Level 1 Depth / Length: 600 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KXTAMIRVR |
| E-Number (Norway) | 4381681 |
| EAN | 8015644004170 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 2.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 240 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Depth / Length | 600 mm |
| Package Level 1 Gross Weight | 3 kg |
| Package Level 1 EAN | 8015644004170 |
| Additional Information | |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT1, XT2, XT3, XT4 |
| Suitable for Product Class | SACE Tmax XT |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC60947-2 |
| UL489 | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0630 |
| External Classifications and Standards | |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| ETIM 10 | EC001044 - Mechanic interlock for switch |
| IDEA Granular Category Code (IGCC) | 4416 >> Enclosure plates or covers |
| Object Classification Code | Q |
| UNSPSC | 39121302 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371303 |
