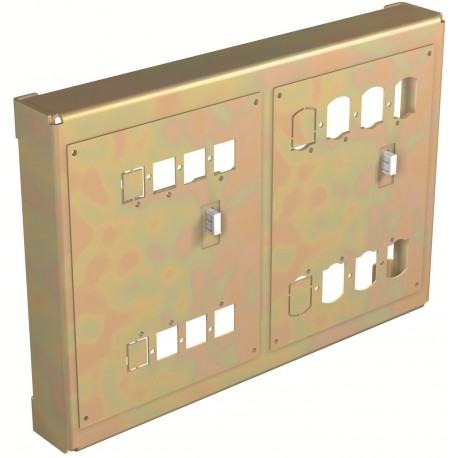

ABB 1SDA060686R1 1SDA060686R1 ABB MIR-VB T6-S6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060686R1 ABB MIR-VB T6-S6

1SDA060686R1

060686

ABB

1 Pcs.

MIR-VB T6-S6 MIR-HB VERTICAL LOCKING - T6

Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SDA060686R1 MIR-VB T6-S6 is a mechanical interlocking accessory commonly integrated into industrial power distribution setups to prevent simultaneous closing of interconnected circuit breakers. Mechanical interlocks are critical in source-changeover schemes to avoid parallel feeding and phase mismatch. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT6MI-V
  • EAN: 8015644631970
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 5.6 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 350 mm
  • Package Level 1 Height: 85 mm
  • Package Level 1 Depth / Length: 830 mm
  • Package Level 1 Gross Weight: 5.9 kg

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT6MI-V
EAN8015644631970
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight5.6 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width350 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length830 mm
Package Level 1 Gross Weight5.9 kg
Package Level 1 EAN8015644631970
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT6
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC001044 - Mechanic interlock for switch
ETIM 10EC001044 - Mechanic interlock for switch
Object Classification CodeQ
UNSPSC39121100
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371303
