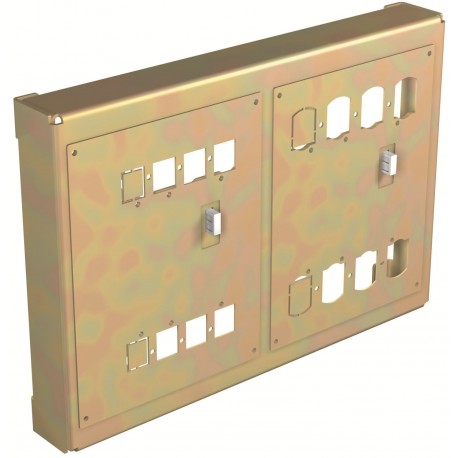

ABB 1SDA054947R1 1SDA054947R1 ABB MIR-VB T4-T5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054947R1 ABB MIR-VB T4-T5

1SDA054947R1

054947

ABB

1 Pcs.

MIR-VB T4-T5 MIR-HB VERTICAL LOCKING - T4/5

Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A vertical mechanical interlock unit, the Abb 1SDA054947R1 coordinates switching operations across multiple circuit breakers to prevent undesirable operating states. This hardware category is essential in heavy electrical switchboards to enforce safety protocols and sequential switching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KT5MIR-VB
  • E-Number (Finland): 3655726
  • EAN: 8015644560867
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 5.6 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 350 mm
  • Package Level 1 Height: 85 mm
  • Package Level 1 Depth / Length: 830 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKT5MIR-VB
E-Number (Finland)3655726
EAN8015644560867
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight5.6 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width350 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length830 mm
Package Level 1 Gross Weight5.9 kg
Package Level 1 EAN8015644560867
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT4, T5
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
ETIM 9EC001044 - Mechanic interlock for switch
ETIM 10EC001044 - Mechanic interlock for switch
IDEA Granular Category Code (IGCC)4416 >> Enclosure plates or covers
Object Classification CodeQ
UNSPSC39121302
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371303

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
