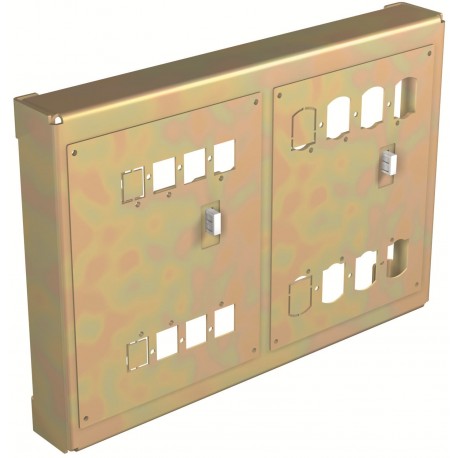

ABB 1SDA063325R1 1SDA063325R1 ABB MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063325R1 ABB MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER

1SDA063325R1

063325

ABB

1 Pcs.

MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER MIR-HB VERTICAL LOCKING - T3

Automation > Mechanic interlock for switch
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA063325R1 ABB MIR-V T3 MECH,LOCK REAR VER. 2 C.BREAKER functions as a specialized mechanical interlocking mechanism for industrial circuit breakers. These components are standard in industrial switchgear configurations to govern the operational states of adjacent protective devices and maintain safety compliance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Information: 1SDC210015D0201
  • Order Code US and Canada: KT3MI-V
  • EAN: 8015644659011
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.7 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Gross Weight: 3 kg
  • Package Level 1 EAN: 8015644659011
  • Configuration Type: Loose or configurable
  • Product Main Type: Accessories for Tmax T
  • Product Name: Accessory
  • Product Type: ACC
  • Standards: IEC
  • Suitable For: T3
  • Suitable for Product Class: SACE Tmax T

More info

▲
Environmental
Environmental Information1SDC210015D0201
Ordering
Order Code US and CanadaKT3MI-V
EAN8015644659011
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Gross Weight3 kg
Package Level 1 EAN8015644659011
Additional Information
Configuration TypeLoose or configurable
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeACC
StandardsIEC
Suitable ForT3
Suitable for Product ClassSACE Tmax T
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDC210015D0201
Classifications
ETIM 7EC001044 - Mechanic interlock for switch
ETIM 8EC001044 - Mechanic interlock for switch
Object Classification CodeQ
UNSPSC39121600
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
