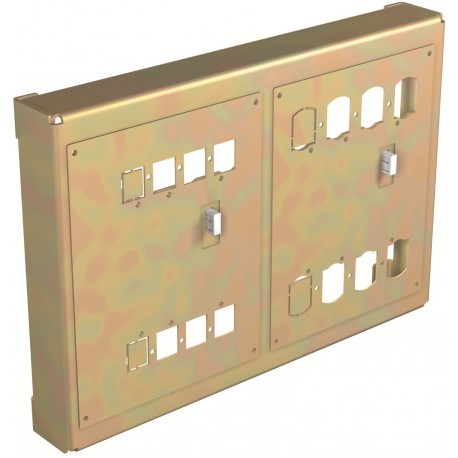

1SDA054952R1 ABB MIR-P tipo E (T5-T5)
1SDA054952R1
054952
ABB
1 Pcs.
Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SDA054952R1 ABB MIR-P tipo E (T5-T5) is a mechanical interlock kit used to coordinate the operation of multiple circuit breakers within an electrical distribution panel. Interlocks of this classification prevent simultaneous closing of paired devices, protecting system architecture against synchronization errors and short-circuit hazards. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- E-Number (Finland): 3655731
- EAN: 8015644560911
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.9 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 230 mm
- Package Level 1 Height: 20 mm
- Package Level 1 Depth / Length: 330 mm
- Package Level 1 Gross Weight: 1.9 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| E-Number (Finland) | 3655731 |
| EAN | 8015644560911 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.9 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 230 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Depth / Length | 330 mm |
| Package Level 1 Gross Weight | 1.9 kg |
| Package Level 1 EAN | 8015644560911 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| ETIM 10 | EC001044 - Mechanic interlock for switch |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371303 |
