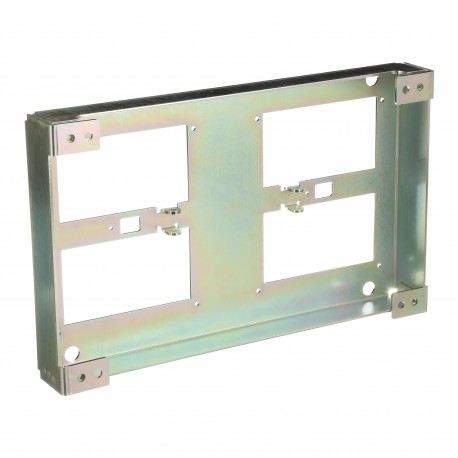

ABB 1SDA066637R1 1SDA066637R1 ABB MIR-HR XT1..XT4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA066637R1 ABB MIR-HR XT1..XT4

1SDA066637R1

066637

ABB

1 Pcs.

MIR-HR XT1..XT4 MIR-HB HORIZONTAL INTERLOCKING - XT1/4

Automation > Mechanic interlock for switch
Accessories XT1-4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A horizontal mechanical interlock assembly, the Abb 1SDA066637R1 provides synchronized control between side-by-side mounted circuit breakers. Such interlocks are heavily utilized in industrial power distribution frameworks to restrict concurrent breaker operation and enhance facility safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: KXTAMIRHR
  • E-Number (Norway): 4381680
  • EAN: 8015644693671
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 3.946 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 370 mm
  • Package Level 1 Height: 85 mm
  • Package Level 1 Depth / Length: 520 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaKXTAMIRHR
E-Number (Norway)4381680
EAN8015644693671
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight3.946 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width370 mm
Package Level 1 Height85 mm
Package Level 1 Depth / Length520 mm
Package Level 1 Gross Weight4.154 kg
Package Level 1 EAN8015644693671
Additional Information
Product Main TypeAccessories for Tmax XT
Product NameAccessory
Product TypeAccessory
Suitable ForXT1, XT2, XT3, XT4
Suitable for Product ClassSACE Tmax XT
Technical
Configuration TypeLoose or configurable
Order Multiple1 piece
StandardsIEC60947-2
UL489
Certificates and Declarations
Data Sheet, Technical Information1SDC210100D0206
1SDC210099D0206
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000719R0614
External Classifications and Standards
ETIM 9EC001044 - Mechanic interlock for switch
ETIM 10EC001044 - Mechanic interlock for switch
IDEA Granular Category Code (IGCC)4416 >> Enclosure plates or covers
Object Classification CodeQ
UNSPSC39121302
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371303
