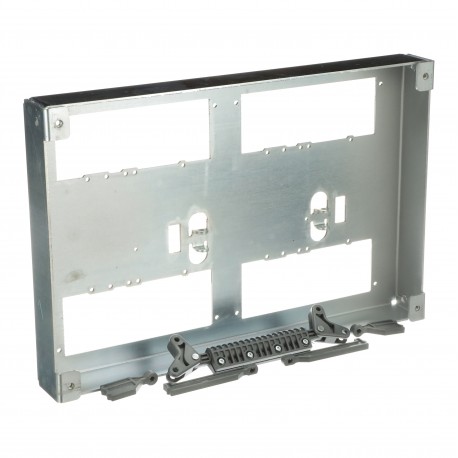

1SDA054946R1 ABB MIR-HB T4-T5
1SDA054946R1
054946
ABB
1 Pcs.
Automation > Mechanic interlock for switch
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA054946R1 MIR-HB T4-T5 is a mechanical interlock assembly deployed in electrical distribution panels to govern the operational states of multiple molded case circuit breakers. By physically restricting unauthorized switching combinations, this hardware enhances safety during maintenance and system transitions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT5MIR-HB
- E-Number (Finland): 3655725
- EAN: 8015644560850
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 5.6 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 370 mm
- Package Level 1 Height: 85 mm
- Package Level 1 Depth / Length: 520 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT5MIR-HB |
| E-Number (Finland) | 3655725 |
| EAN | 8015644560850 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 5.6 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 370 mm |
| Package Level 1 Height | 85 mm |
| Package Level 1 Depth / Length | 520 mm |
| Package Level 1 Gross Weight | 5.9 kg |
| Package Level 1 EAN | 8015644560850 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T4, T5 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDC210015D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| ETIM 10 | EC001044 - Mechanic interlock for switch |
| IDEA Granular Category Code (IGCC) | 4416 >> Enclosure plates or covers |
| Object Classification Code | Q |
| UNSPSC | 39121302 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371303 |
