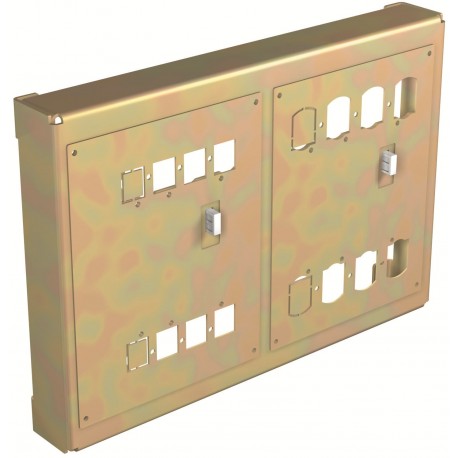

ABB 1SDA063324R1 1SDA063324R1 ABB MIR-H T3 MECH,LOCK REAR HOR. 2 C.BREAKER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063324R1 ABB MIR-H T3 MECH,LOCK REAR HOR. 2 C.BREAKER

1SDA063324R1

063324

ABB

1 Pcs.

MIR-H T3 MECH,LOCK REAR HOR. 2 C.BREAKER MIR-HB HORIZONTAL LOCKING - T3

Automation > Mechanic interlock for switch
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for rear horizontal mounting, the ABB 1SDA063324R1 mechanical lock coordinates the operational states of two circuit breakers within an electrical enclosure. Panel builders rely on such interlocking devices to prevent unsafe parallel operations and manage supply sources. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Information: 1SDC210015D0201
  • Order Code US and Canada: KT3MI-H
  • EAN: 8015644659004
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 2.7 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 536 mm
  • Package Level 1 Height: 94 mm
  • Package Level 1 Depth / Length: 372 mm
  • Package Level 1 Gross Weight: 3 kg
  • Package Level 1 EAN: 8015644659004
  • Product Main Type: Accessories for Tmax T
  • Product Name: Accessory
  • Product Type: ACC
  • Suitable For: T3

More info

▲
Environmental
Environmental Information1SDC210015D0201
Ordering
Order Code US and CanadaKT3MI-H
EAN8015644659004
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight2.7 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width536 mm
Package Level 1 Height94 mm
Package Level 1 Depth / Length372 mm
Package Level 1 Gross Weight3 kg
Package Level 1 EAN8015644659004
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeACC
Suitable ForT3
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDC210015D0201
External Classifications and Standards
Object Classification CodeQ
UNSPSC39121600
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
