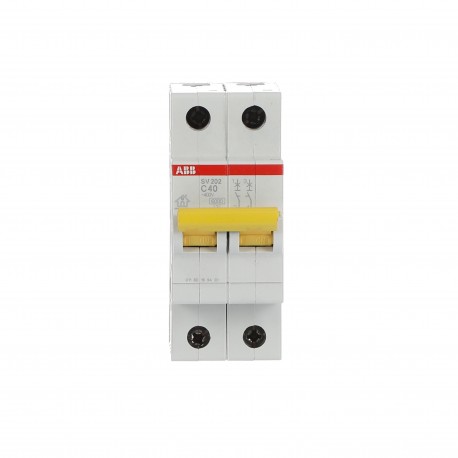

2CDS212066R0164 ABB Miniature Circuit Breaker SV200
2CDS212066R0164
212066
ABB
1 Pcs.
Miniature Circuit Breaker - SV200
Int.aut. SV202-C16 2p 16A C 6kA
Miniature Circuit Breaker - SV200 - 2P - 16 A - C - (400 V AC) 6 kA
Automation > Miniature circuit breaker (MCB)
SV200
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ensure reliable overcurrent protection in automated electrical systems with this ABB miniature circuit breaker SV200, part number 2CDS212066R0164. Circuit breakers protect vital wiring and connected machinery by automatically breaking electrical connections when fault currents are detected. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- EcoSolutions Profile: 9AKK108471A1003
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 92.1 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Extended Product Lifetime: Product Durability
- End Of Life Disassembling Instructions: 9AKK108468A3121
- Environmental Product Declaration - EPD: 9AKK108468A1580
- Energy Limiting Class: 3
- Number of Protected Poles: 2
- Number of Poles: 2P
- Accessories Available: No
- Connecting Capacity: Flexible with Ferrule 0.75 ... 16 mm²
- Tripping Characteristic: C
- Rated Operational Voltage: acc. to IEC 60898-1 400 V
- Rated Insulation Voltage (U i ): acc. to IEC/EN 60664-1 440 V
- Rated Impulse Withstand Voltage (U imp ): 4 kV
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A1003 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 92.1 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108468A3121 |
| Environmental Product Declaration - EPD | 9AKK108468A1580 |
| Technical | |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 2 |
| Number of Poles | 2P |
| Accessories Available | No |
| Connecting Capacity | Flexible with Ferrule 0.75 ... 16 mm² |
| Flexible 0.75 ... 16 mm² | |
| Rigid 0.75 ... 25 mm² | |
| Stranded 0.75 ... 25 mm² | |
| Electrical | |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| at 2000 m 5 kV | |
| at Sea Level 6.2 kV | |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Short-Circuit Capacity | (400 V AC) 6 kA |
| (400 V) 6 kA | |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 6 kA |
| (400 V) 6 kA | |
| Rated Frequency (f) | 50 / 60 Hz |
| Overvoltage Category | III |
| Material Compliance | |
| RoHS Declaration | 2CDK400646D2701 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230209 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Environmental Information | 2CDK400030D0201 |
| Dimensions | |
| Width in Number of Modular Spacings | 2.0 |
| Product Net Width | 35 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.21 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| Ordering | |
| Package Level 1 Units | carton 5 piece |
| Package Level 1 Gross Weight | 1.09 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK400646D2701 |
| Installation | |
| Instructions and Manuals | 2CDS207105P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC400030D0202 |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| Object Classification Code | F |
| Standards | IEC/EN 60898-1 |
| Certification Agency | EN |
| IEC | |
