View larger
Images are for illustrative purposes only. Please refer to data sheet for details

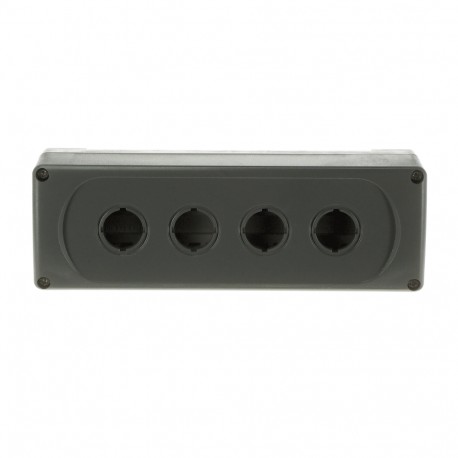

1SFA611814R1000 ABB MEP4-0 Enclosure
1SFA611814R1000
611814
ABB
1 Pcs.
MEP4-0 Enclosure
4-POS MEP4-0 BOX
Automation > Enclosure for control circuit devices
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | MEP4 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 0.221 m |
| Product Net Depth / Length | 0.075 m |
| Product Net Height | 0.061 m |
| Product Net Weight | 0.309 kg |
| Technical | |
| Accessory Type | Enclosure |
| Color | Dark grey/Light grey |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Housing Material | Plastic |
| Suitable For | MP1 |
| MP2 | |
| MP3 | |
| MP4 | |
| MPM1 | |
| KP6 | |
| M2SS1 | |
| M2SS2 | |
| M2SS3 | |
| M2SS4 | |
| M2SS5 | |
| M2SS6 | |
| M3SS1 | |
| M3SS2 | |
| M3SS3 | |
| M3SS4 | |
| M3SS5 | |
| M3SS6 | |
| M3SS7 | |
| M3SS8 | |
| M3SSC1 | |
| M3SSC2 | |
| M3SSC3 | |
| M3SSC4 | |
| M3SSC5 | |
| M3SSC6 | |
| M3SSC7 | |
| M3SSC8 | |
| M2SSK1 | |
| M2SSK2 | |
| M2SSK3 | |
| M2SSK4 | |
| M3SSK1 | |
| M3SSK2 | |
| M3SSK3 | |
| MTS1 | |
| MTS2 | |
| MTS3 | |
| MJS | |
| CP1 | |
| CP2 | |
| CP3 | |
| CP4 | |
| CP11 | |
| CP12 | |
| CP33 | |
| C2SS1 | |
| C2SS2 | |
| C2SS3 | |
| CPM3 | |
| CL | |
| CL2 | |
| CB1 | |
| CP6 | |
| P9MP | |
| P9MS | |
| P9ME | |
| P9ML | |
| P9MM | |
| P9MC | |
| P9MSC | |
| P9MPS | |
| Suitable for Product Class | Pilot Devices |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Degree of Protection | Front IP66 |
| Housing IP66 | |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CE | 2CMT2015-005444 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.26 m |
| Package Level 1 Height | 0.061 m |
| Package Level 1 Gross Weight | 0.325 kg |
| Package Level 1 EAN | 7320500312766 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371205 |
| E-Number (Finland) | 2339553 |
| E-Number (Norway) | 4373044 |
| E-Number (Sweden) | 3717108 |
| ETIM 6 | EC000200 - Enclosure for control circuit devices |
| ETIM 7 | EC000200 - Enclosure for control circuit devices |
| ETIM 8 | EC000200 - Enclosure for control circuit devices |
| ETIM 9 | EC000200 - Enclosure for control circuit devices |
| IDEA Granular Category Code (IGCC) | 4478 >> Electrical pushbutton enclosure |
| Object Classification Code | S |
| UNSPSC | 39121326 |
| Feature Name | Feature Value |
|---|---|
| Number of command positions (EF001372) | 4 |
| Construction type housing (EF004008) | Surface mounting housing |
| Housing material (EF001596) | Plastic |
| Diameter openings (EF000243) | 22 mm |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Width (EF000008) | 0.221 mm |
| Height (EF000040) | 0.061 mm |
| Depth (EF000049) | 0.075 mm |
