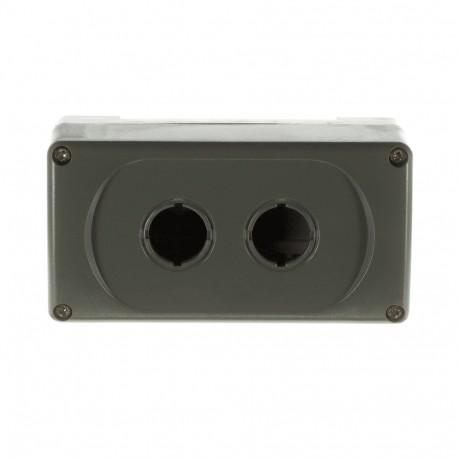

1SFA611812R1001 ABB MEP2-1001 Enclosure
1SFA611812R1001
611812
ABB
1 Pcs.
Automation > Control circuit devices combination in enclosure
elements PDA
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb MEPY1-1001 Enclosure (1SFA611812R1001) serves as a protective housing for mounting operator control devices on factory equipment and control panels. These enclosures shield internal electrical contacts from environmental contaminants while organizing pilot devices neatly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 8538909999
- Product Main Type: MEP2
- Data Sheet, Technical Information: 1SFC151007C02__
- Instructions and Manuals: 1SFC151011M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 0.141 m
- Product Net Depth / Length: 0.075 m
- Product Net Height: 0.075 m
- Product Net Weight: 0.079 kg
- Accessory Type: Enclosure
- Color: Dark grey/Light grey
- Enclosure Type NEMA: Type1
- Housing Material: Plastic
- Number of Auxiliary Contacts NC: 1
- Number of Auxiliary Contacts NO: 1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | MEP2 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SFC151007C02__ |
| Instructions and Manuals | 1SFC151011M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 0.141 m |
| Product Net Depth / Length | 0.075 m |
| Product Net Height | 0.075 m |
| Product Net Weight | 0.079 kg |
| Technical | |
| Accessory Type | Enclosure |
| Color | Dark grey/Light grey |
| Enclosure Type NEMA | Type1 |
| Type12 | |
| Type13 | |
| Type3R | |
| Type4 | |
| Type4X | |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Rated Operational Voltage | 24 ... 690 V AC/DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Storage -40 ... +85 °C | |
| Degree of Protection | Front IP66 |
| Housing IP66 | |
| Terminals IP20 | |
| Material | Plastic |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006479 |
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| CQC Certificate | CQC2005010304154103 |
| cULus Certificate | 9AKK107046A9925 |
| Declaration of Conformity - CCC | 2020980305001528 |
| Declaration of Conformity - CE | 2CMT2015-005444 |
| Declaration of Conformity - UKCA | 2CMT2020-006121 |
| DNV GL Certificate | E-14107 |
| EAC Certificate | EAC RU C-CN.ME77.B.00585/20 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 0.11 m |
| Package Level 1 Depth / Length | 0.18 m |
| Package Level 1 Height | 0.075 m |
| Package Level 1 Gross Weight | 0.079 kg |
| Package Level 1 EAN | 7320500312643 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371216 |
| E-Number (Finland) | 2339511 |
| E-Number (Norway) | 4373157 |
| E-Number (Sweden) | 3717040 |
| ETIM 6 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 8 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 9 | EC000225 - Control circuit devices combination in enclosure |
| Object Classification Code | S |
| UNSPSC | 39121326 |
