View larger
Images are for illustrative purposes only. Please refer to data sheet for details

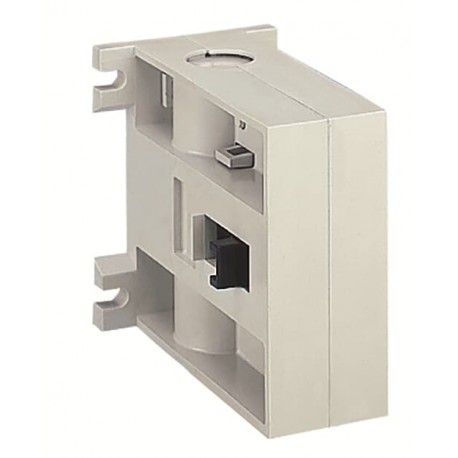

1SFN035701R1000 ABB MECH. INTERLOCK VM750V
1SFN035701R1000
035701
ABB
1 Pcs.
MECH. INTERLOCK#VM750V
VM750V MECHANICAL INTERLOCK
VM750V Mechanical Interlock Unit
Automation > Mechanic interlock for switch
"A" SECRLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC380036-89 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 15 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Height | 123.5 mm |
| Product Net Weight | 0.2 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF400 |
| AF460 | |
| AF580 | |
| AF750 | |
| AF1250 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Mechanical Interlock Unit |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT005309 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 446 mm |
| Package Level 1 Depth / Length | 48 mm |
| Package Level 1 Height | 77 mm |
| Package Level 1 Gross Weight | 1.3 kg |
| Package Level 1 EAN | 7320500222126 |
| External Classifications and Standards | |
| Object Classification Code | R |
| ETIM 7 | EC001044 - Mechanic interlock for switch |
| ETIM 8 | EC001044 - Mechanic interlock for switch |
| ETIM 9 | EC001044 - Mechanic interlock for switch |
| UNSPSC | 39121529 |
| E-Number (Norway) | 4116140 |
| E-Number (Sweden) | 4116140 |
| Feature Name | Feature Value |
|---|---|
| Auxiliary contacts, extendable (EF001450) | No |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
