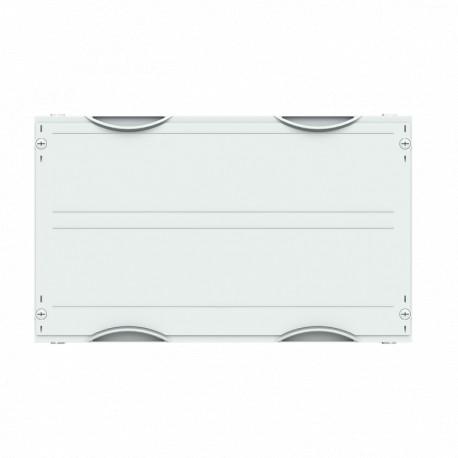

2CPX041738R9999 ABB MBS224 Set Busbar Module
2CPX041738R9999
041738
ABB
1 Pcs.
Automation > Distributor assembly busbars
CombiLine-M
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 2CPX041738R9999 ABB MBS224 Set Busbar Module provides a prefabricated interior fitting framework for organizing horizontal busbar systems within modular enclosure assemblies. This accessory structure assists electrical panel builders in streamlining internal power routing while adhering to enclosure design specifications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated Service Short-Circuit Breaking Capacity (I cs ): 15 kA
- Busbar Position: Center Central
- Number of Poles: 5P
- Enclosure Module Equipment: Excludes Devices
- Enclosure Mounting Frame: WR or EDF
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 000
- Meter Type:
- Accessories Available: Yes
- DIN Place Units: 48
- Meter Boards: 0
- Module Function: Busbar system horizontal
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
- Rated Insulation Voltage (U i ): 690 V
- Rated Impulse Withstand Voltage (U imp ): 6 kV
More info
▲| Technical | |
|---|---|
| Rated Service Short-Circuit Breaking Capacity (Ics) | 15 kA |
| Busbar Position | Center Central |
| Number of Poles | 5P |
| Enclosure Module Equipment | Excludes Devices |
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| Meter Type | " |
| Accessories Available | Yes |
| DIN Place Units | 48 |
| Meter Boards | 0 |
| Module Function | Busbar system horizontal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 360 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | 35 kA |
| Design | |
| Color | Light grey |
| Number of Modules | 48 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 609fd13f-6762-4d5a-aa50-68f23db0cf42 Germany |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 1.99 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 200 mm |
| Engineering | |
| EPLAN Data | 9AAF623202_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.99 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112286M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001896 - Distributor assembly busbars |
| ETIM 10 | EC001896 - Distributor assembly busbars |
| eClass | V11.0 : 27400610 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
