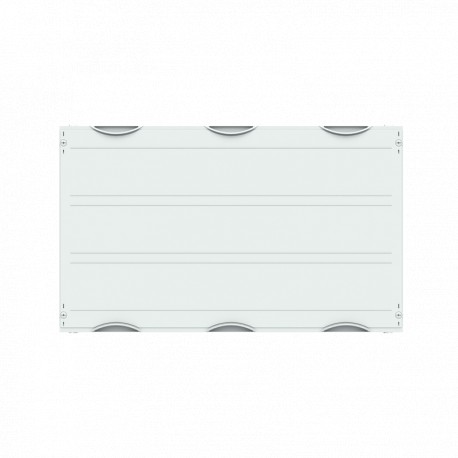

2CPX041832R9999 ABB MBR303 Set Busbar Module
2CPX041832R9999
041832
ABB
1 Pcs.
Automation > Distributor assembly Low Voltage HRC fuse systems
CombiLine-M
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB 2CPX041832R9999 ABB MBR303 Set Busbar Module serves as a specialized interior fitting module engineered to support structured power distribution within modular enclosures. Electrical installers rely on these modules to establish organized busbar connections and maintain safety standards in control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Poles: 3P
- Number of Fuse Switch Disconnectors: 0
- Number of Knife Blade Fuse Holders: 0
- Number of DIN Rails for Mounting: 0
- Enclosure Module Equipment: Excludes Devices
- Enclosure Mounting Frame: WR
- Device: D02, E27, E33
- Enclosure Type: Interior fitting module
- Enclosure Type of Height: 00
- Meter Type:
- Accessories Available: Yes
- DIN Place Units: 108
- Meter Boards: 0
- Module Function: Busbar system 60 mm horizontal
- Rated Operational Voltage: Maximum 400 V
- Operational Voltage: 400 V
More info
▲| Technical | |
|---|---|
| Number of Poles | 3P |
| Number of Fuse Switch Disconnectors | 0 |
| Number of Knife Blade Fuse Holders | 0 |
| Number of DIN Rails for Mounting | 0 |
| Enclosure Module Equipment | Excludes Devices |
| Enclosure Mounting Frame | WR |
| Device | D02, E27, E33 |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 00 |
| Fuse Type | Other |
| Meter Type | " |
| Accessories Available | Yes |
| DIN Place Units | 108 |
| Meter Boards | 0 |
| Module Function | Busbar system 60 mm horizontal |
| Fuse Size | Other |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 630 A |
| Design | |
| Color | Light grey |
| Number of Modules | 108 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 750 mm |
| Product Net Height | 450 mm |
| Product Net Depth / Length | 260 mm |
| Product Net Weight | 4.22 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 275 mm |
| Engineering | |
| EPLAN Data | 9AAF623204_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 4.22 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112318M5601 |
| 2CPC104708M5601 | |
| Mounting Type | Rail system |
| Mounting Orientation | Horizontal |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC002286 - Distributor assembly Low Voltage HRC fuse systems |
| ETIM 10 | EC002286 - Distributor assembly Low Voltage HRC fuse systems |
| eClass | V11.0 : 27400619 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
