ABB 2CPX041831R9999 2CPX041831R9999 ABB MBR203 Set Busbar Module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

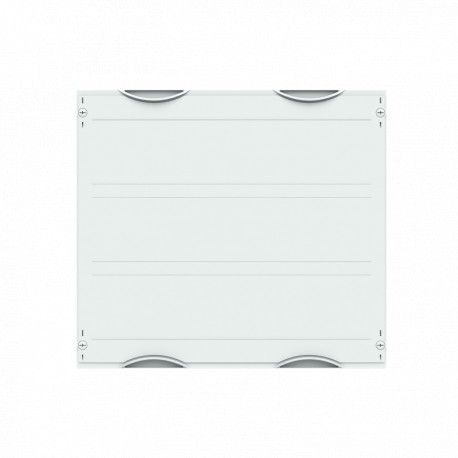

2CPX041831R9999 ABB MBR203 Set Busbar Module

2CPX041831R9999

041831

ABB

1 Pcs.

MBR203 Set Busbar Module MBR203 3P 630A Bar Kit,H=450 A=500 Busbar system 60 mm horizontal 450 mm x 500 mm x 260 mm , 00 , 2

Automation > Distributor assembly Low Voltage HRC fuse systems
CombiLine-M

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb 2CPX041831R9999 ABB MBR203 Set Busbar Module provides a dedicated interior infrastructure for mounting 60 mm busbar systems and related switching equipment inside modular enclosures. These modular units facilitate efficient power routing in industrial switchgear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Poles: 3P
  • Number of Fuse Switch Disconnectors: 0
  • Number of Knife Blade Fuse Holders: 0
  • Number of DIN Rails for Mounting: 0
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR
  • Device: D02, E27, E33
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 00
  • Meter Type:
  • Accessories Available: Yes
  • DIN Place Units: 72
  • Meter Boards: 0
  • Module Function: Busbar system 60 mm horizontal
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V

More info

▲
Technical
Number of Poles3P
Number of Fuse Switch Disconnectors0
Number of Knife Blade Fuse Holders0
Number of DIN Rails for Mounting0
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR
DeviceD02, E27, E33
Enclosure TypeInterior fitting module
Enclosure Type of Height00
Fuse TypeOther
Meter Type"
Accessories AvailableYes
DIN Place Units72
Meter Boards0
Module FunctionBusbar system 60 mm horizontal
Fuse SizeOther
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)630 A
Design
ColorLight grey
Number of Modules72
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width500 mm
Product Net Height450 mm
Product Net Depth / Length260 mm
Product Net Weight2.27 kg
Section Width2
Built-In Depth (t2)275 mm
Engineering
EPLAN Data9AAF623204_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight2.27 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112318M5601
2CPC104708M5601
Mounting TypeRail system
Mounting OrientationHorizontal
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 10EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClassV11.0 : 27400619
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
