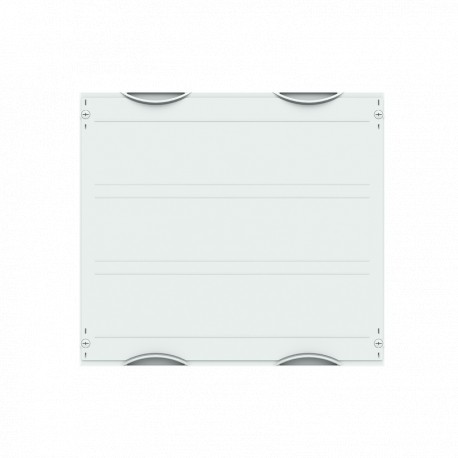

2CPX041808R9999 ABB MBA630A Set Circuit-Breaker Module

2CPX041808R9999

041808

ABB

1 Pcs.

MBA630A Set Circuit-Breaker Module MBA630A Kit universal <= 630A, H450xA500 Universal switch unequipped 450 mm x 500 mm x 215 mm , 00 , 2

Automation > Distributor assembly switch
CombiLine-M

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 2CPX041808R9999 ABB MBA630A Set Circuit-Breaker Module operates as an interior fitting module used to configure circuit breakers within modular enclosure systems. Electrical distribution setups utilize these structural module kits to safely position heavy-duty switching hardware and maintain separation inside distribution boards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 630 A
  • Number of Switches: 0
  • Number of Mountable Devices: 1
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR or EDF
  • Device: OT630E
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 00
  • Meter Type: "
  • DIN Place Units: 72
  • Meter Boards: 0
  • Module Function: Universal switch unequipped
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Insulation Voltage (U i ): 690 V
  • Rated Impulse Withstand Voltage (U imp ): 6 kV

More info

▲
Technical
Rated Operational Current (Ie)630 A
Number of Switches0
Number of Mountable Devices1
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
DeviceOT630E
Enclosure TypeInterior fitting module
Enclosure Type of Height00
Meter Type"
DIN Place Units72
Meter Boards0
Module FunctionUniversal switch unequipped
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)630 A
Design
ColorLight grey
Number of Modules72
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width500 mm
Product Net Height450 mm
Product Net Depth / Length215 mm
Product Net Weight2.85 kg
Section Width2
Built-In Depth (t2)215 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight2.85 kg
E-Number (Norway)2407824
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112298M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
