ABB 2CPX042841R9999 2CPX042841R9999 ABB MBA191T Tmax MCCB modul XT2 1PW View larger
Images are for illustrative purposes only. Please refer to data sheet for details

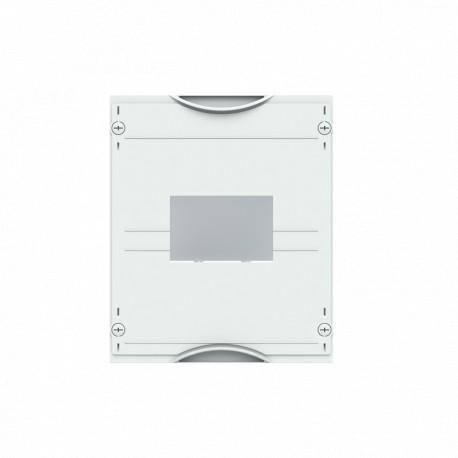

2CPX042841R9999 ABB MBA191T Tmax MCCB modul XT2 1PW

2CPX042841R9999

042841

ABB

1 Pcs.

MBA191T Tmax MCCB modul XT2 1PW MBA191T Tmax XT2 Kit, H300xA250, 2Hx1A Main circuit breaker Tmax 300 mm x 250 mm x 200 mm , 000 , 1

Automation > Distributor assembly switch
CombiLine-M

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Tmax MCCB modul XT2 1PW is an interior fitting module used inside electrical distribution boards to house and support molded case circuit breakers cleanly. Produced by Abb with part number 2CPX042841R9999, it provides the structural interface required to integrate protective switching devices into modular enclosure systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated Operational Current (I e ): 160 A
  • Number of Poles: 3P
  • Number of Switches: 0
  • Number of Mountable Devices: 1
  • Enclosure Module Equipment: Excludes Devices
  • Enclosure Mounting Frame: WR or EDF
  • Device: XT2
  • Enclosure Type: Interior fitting module
  • Enclosure Type of Height: 000
  • Meter Type: "
  • DIN Place Units: 24
  • Module Function: Main circuit breaker Tmax
  • Rated Operational Voltage: Maximum 400 V
  • Operational Voltage: 400 V
  • Rated Insulation Voltage (U i ): 690 V
  • Rated Impulse Withstand Voltage (U imp ): 6 kV

More info

▲
Technical
Rated Operational Current (Ie)160 A
Number of Poles3P
Number of Switches0
Number of Mountable Devices1
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
DeviceXT2
Enclosure TypeInterior fitting module
Enclosure Type of Height000
Meter Type"
DIN Place Units24
Module FunctionMain circuit breaker Tmax
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Current (In)160 A
Design
ColorLight grey
Number of Modules24
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height300 mm
Product Net Depth / Length200 mm
Product Net Weight1.159 kg
Section Width1
Built-In Depth (t2)200 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight1.205 kg
E-Number (Norway)2437751
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC119767M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
