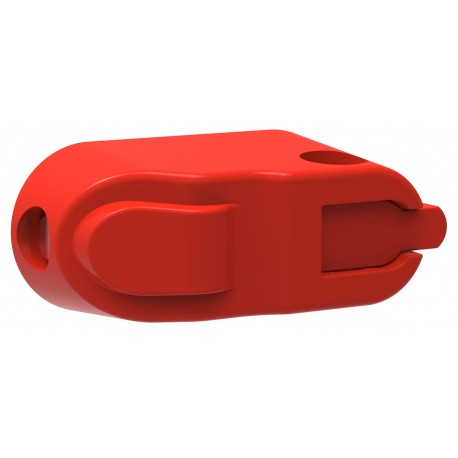

1SCA109097R1001 ABB Mando OHRS12/1
1SCA109097R1001
109097
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA109097R1001 ABB Mando OHRS12/1 functions as a specialized control accessory for industrial switchgear, facilitating mechanical actuation in electrical distribution panels. Components like this ensure reliable manual operation of enclosed circuit disconnects and protective devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390064M0004
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 75 mm
- Product Net Height: 45 mm
- Product Net Depth / Length: 66 mm
- Product Net Weight: 0.01 kg
- Package Level 1 Units: bag 1 piece
- Package Level 1 Width: 75 mm
- Package Level 1 Depth / Length: 66 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390064M0004 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 75 mm |
| Product Net Height | 45 mm |
| Product Net Depth / Length | 66 mm |
| Product Net Weight | 0.01 kg |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 75 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| Package Level 1 EAN | 6417019424842 |
| Technical | |
| Color | Red |
| Handle Color | Red |
| Handle Length | 37 mm |
| Handle Type | Knob |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 39122230 |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3600118 |
