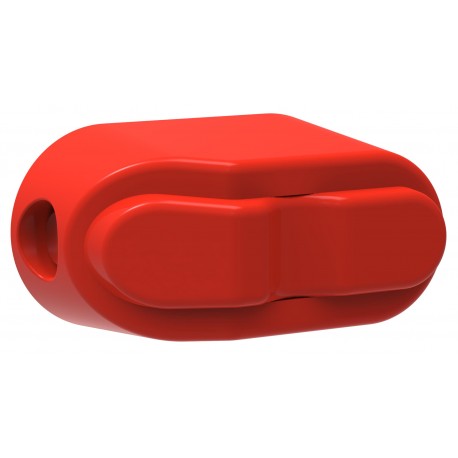

1SCA109096R1001 ABB Mando OHRS1 / 1
1SCA109096R1001
109096
ABB
1 Pcs.
Automation > Handle for power circuit breaker
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SCA109096R1001 controller handle is an operator control component used to interface with industrial switches and disconnectors mounted inside electrical panels. Panel builders utilize these handles to provide external mechanical actuation for internal switching devices while keeping cabinet doors securely closed. Please submit an RFQ to confirm current pricing, availability, and lead times.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390064M0004
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Lithuania
- Product Net Width: 75 mm
- Product Net Height: 45 mm
- Product Net Depth / Length: 66 mm
- Product Net Weight: 0.01 kg
- Package Level 1 Units: bag 1 piece
- Package Level 1 Width: 75 mm
- Package Level 1 Depth / Length: 66 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390064M0004 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 75 mm |
| Product Net Height | 45 mm |
| Product Net Depth / Length | 66 mm |
| Product Net Weight | 0.01 kg |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 75 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Gross Weight | 0.01 kg |
| Package Level 1 EAN | 6417019424835 |
| Technical | |
| Color | Red |
| Handle Color | Red |
| Handle Length | 31 mm |
| Handle Type | Knob |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC390030D2704 |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC000229 - Handle for power circuit breaker |
| ETIM 10 | EC000229 - Handle for power circuit breaker |
| UNSPSC | 31162801 |
| eClass | V11.1 : 27370414 |
| WEEE Category | Product Not in WEEE Scope |
